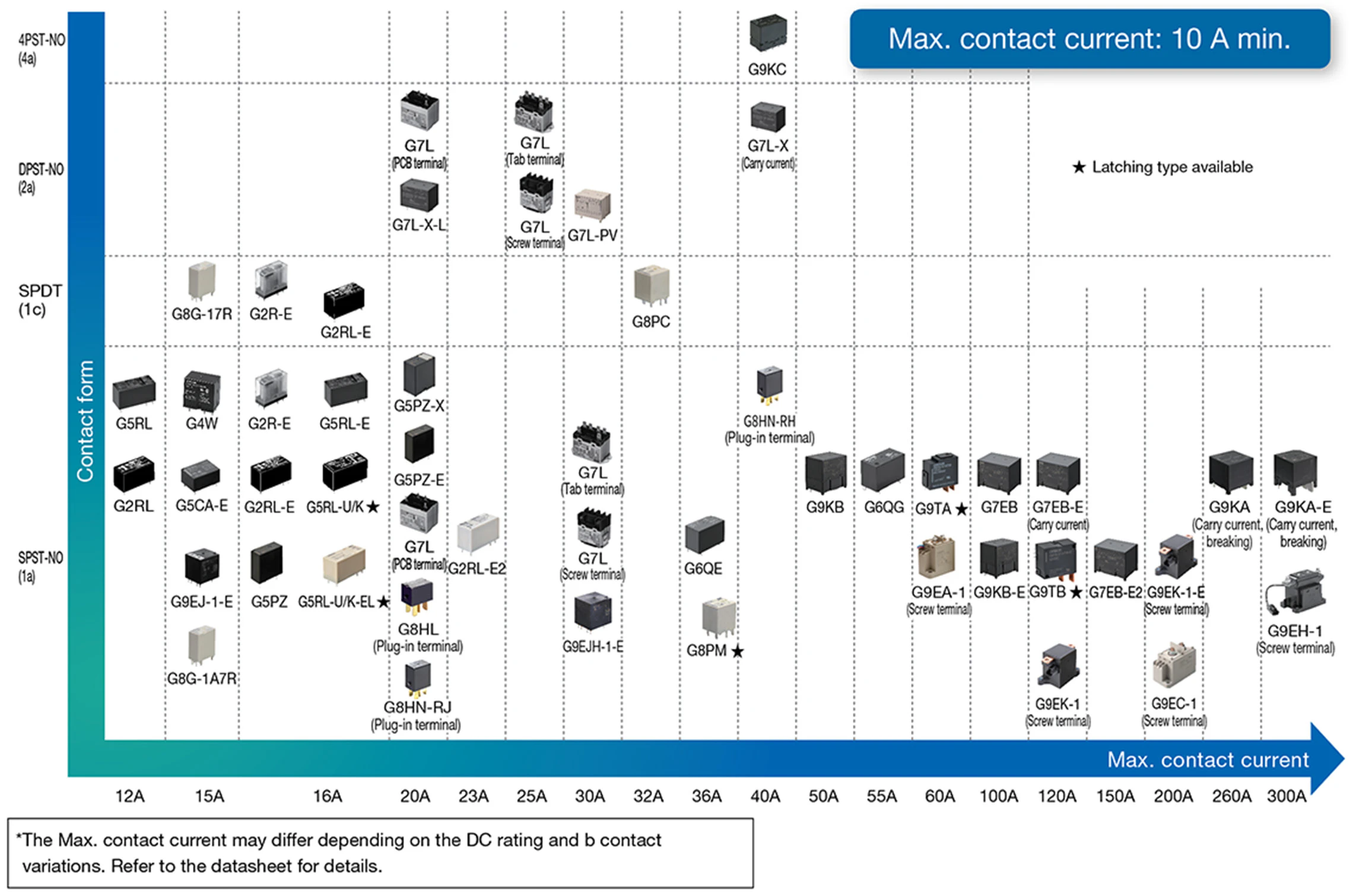

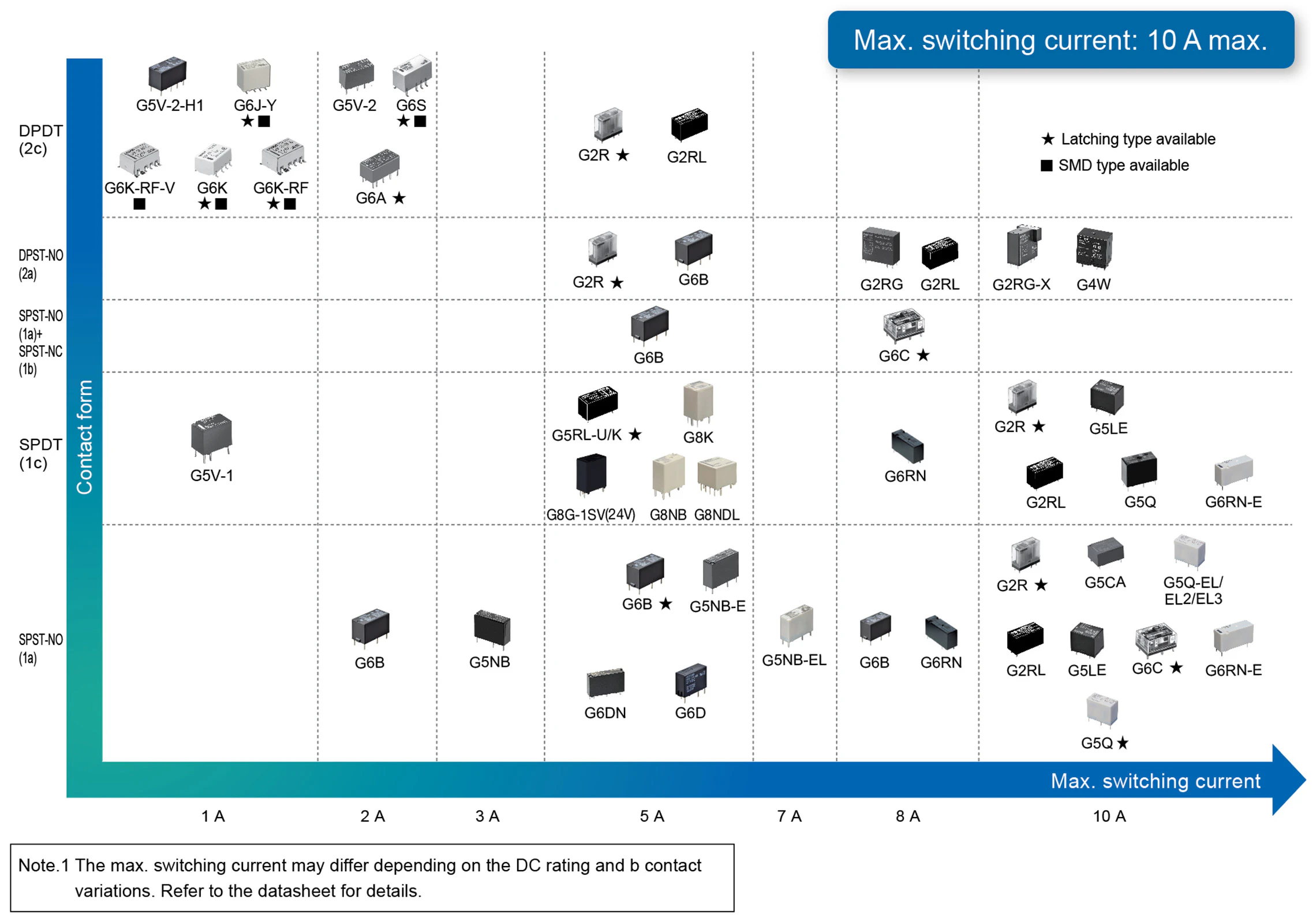

Signal Relays/Power Relays classification table

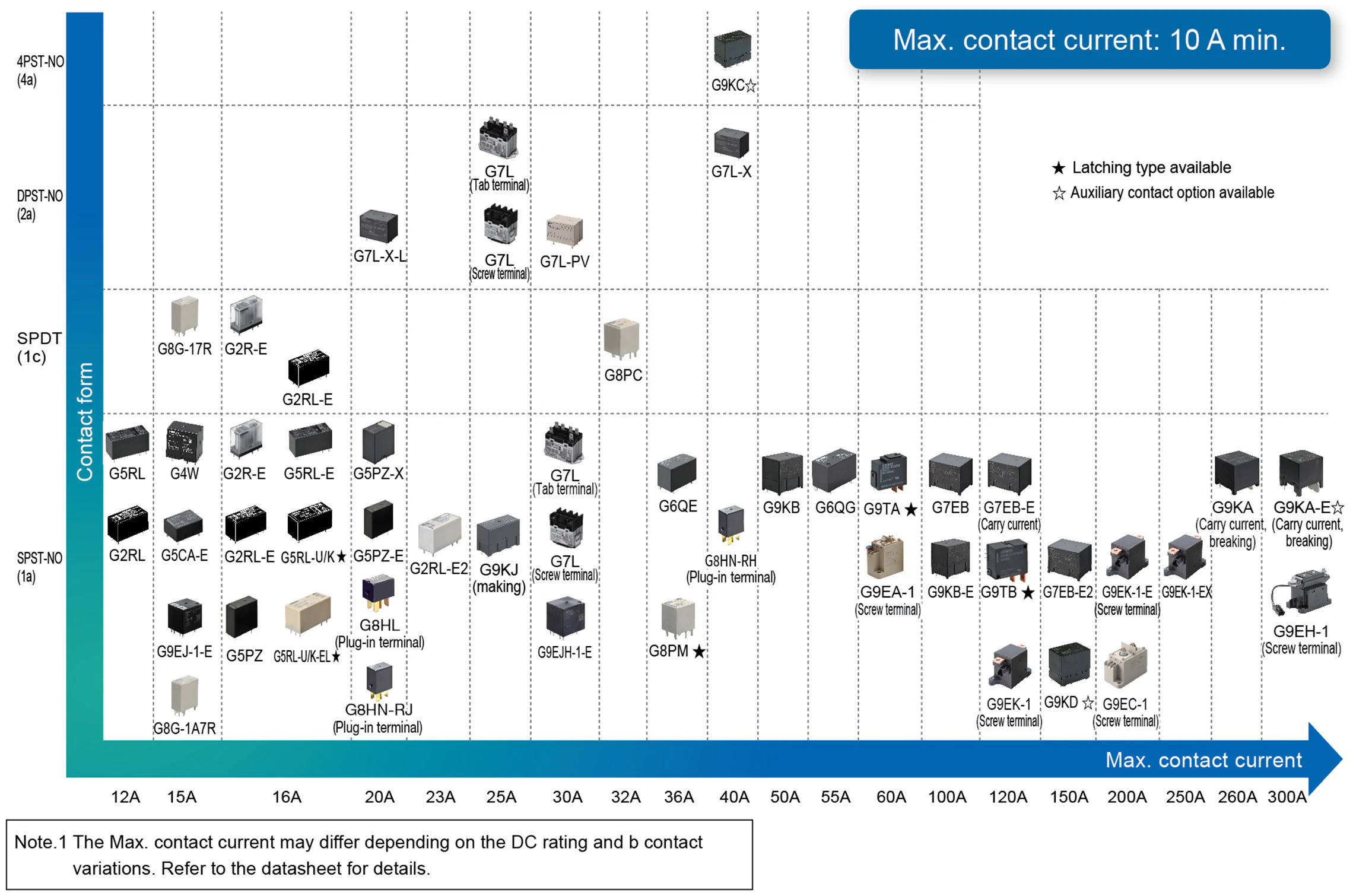

Signal Relays/Power Relays classification table
Signal Relays/Power Relays classification table

Signal Relay

Model Shape Contact form Maximum contact current
G5V-1 G5V-1 1c 1
G5V-2(Ultra-high sensitivity type) G5V-2(Ultra-high sensitivity type) 2c 1
G5V-2(Standard type) G5V-2(Standard type) 2c 2
G6A G6A 2c 2
G6E G6E 1c 3
G6J-Y G6J-Y 2c 1
G6K G6K 2c 1
G6K-RF G6K-RF 2c 1
G6K-RF-V G6K-RF-V 2c 1
G6S G6S 2c 2

PCB Power Relays

Model Shape Contact form Maximum contact current
G2R(Standard type) G2R(Standard type) 1a 10
G2R(Standard type) G2R(Standard type) 1c 10
G2R(High capacity type) G2R(High capacity type) 1a 16
G2R(High capacity type) G2R(High capacity type) 1c 16
G2R(Standard type) G2R(Standard type) 2a 5
G2R(Standard type) G2R(Standard type) 2c 5
G2RG G2RG 2a 8
G2RG-X G2RG-X 2a 10, 8(carry current)
G2RL(Standard type/high sensitivity type) G2RL(Standard type/high sensitivity type) 1a 12
G2RL(High capacity type) G2RL(High capacity type) 1a 16
G2RL(High capacity type) G2RL(High capacity type) 1c 16
G2RL(Standard type/high sensitivity type) G2RL(Standard type/high sensitivity type) 1c 10
G2RL(Standard type) G2RL(Standard type) 2a 8
G2RL(Standard type) G2RL(Standard type) 2c 8
G2RL-E2 G2RL-E2 1a 23
G4A G4A 1a 20
G4W G4W 1a 15
G4W G4W 2a 10
G5CA(Standard type/High sensitivity type) G5CA(Standard type/High sensitivity type) 1a 10
G5CA(High capacity type/Tab terminal) G5CA(高容量形/タブ端子) 1a 15
G5LE G5LE 1a 10
G5LE G5LE 1c 10
G5NB G5NB 1a 3
G5NB-E G5NB-E 1a 5

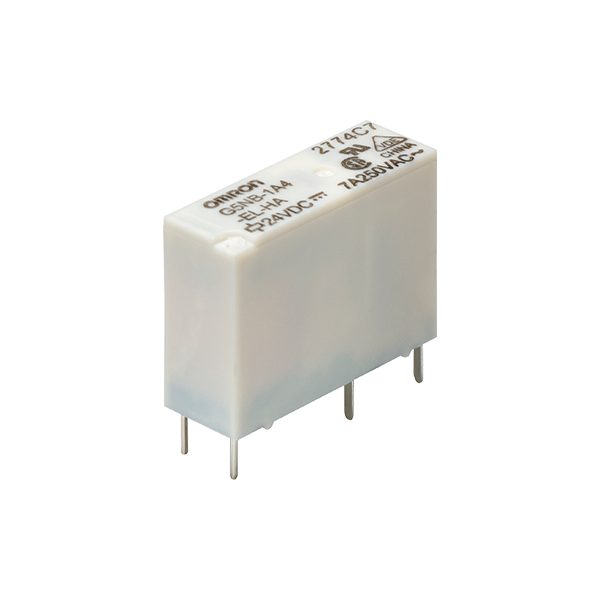

G5NB-EL(AC rating) G5NB-EL(AC rating) 1a AC:7、DC5
G5PZ(Standard type) G5PZ(Standard type) 1a 16
G5PZ(High capacity type) G5PZ(High capacity type) 1a 20

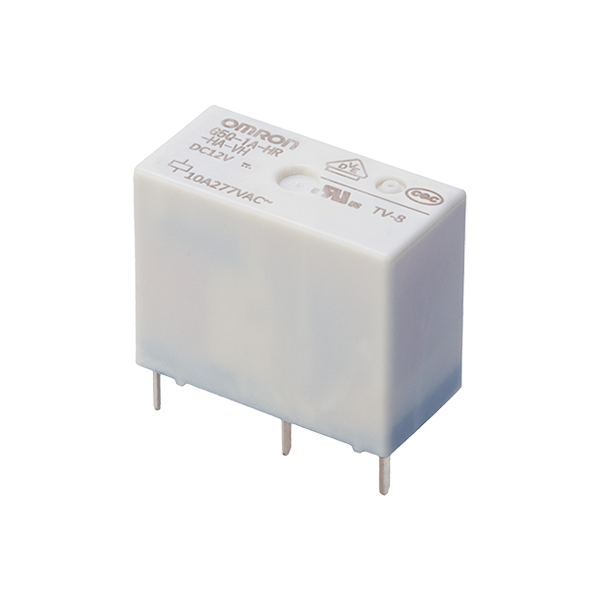

G5Q(AC NC/DC NC) G5Q(AC NC/DC NC) 1a AC : 10(N.O.)/3(N.C.)
DC : 5(N.O.)/3(N.C.)
G5Q(AC NO) G5Q(AC NO) 1a AC : 10(N.O.)/3(N.C.)
DC : 5(N.O.)/3(N.C.)
G5Q(AC NO) G5Q(AC NO) 1c AC : 10(N.O.)/3(N.C.)
DC : 5(N.O.)/3(N.C.)
G5Q(AC NC/DC NC) G5Q(AC NC/DC NC) 1c AC : 10(N.O.)/3(N.C.)
DC : 5(N.O.)/3(N.C.)

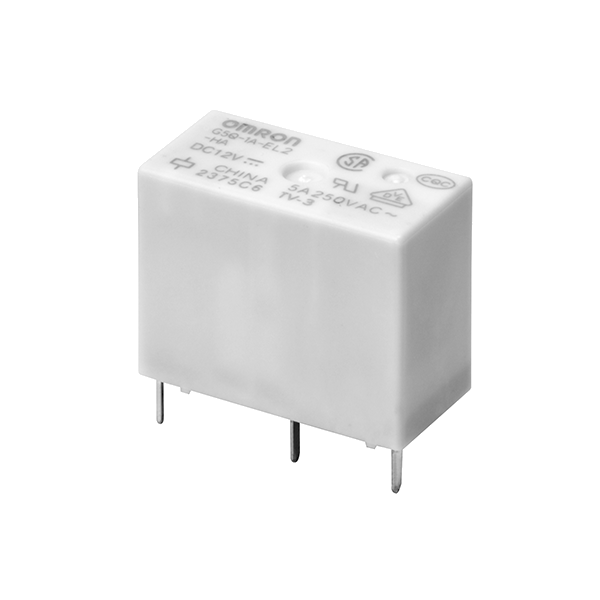

G5Q-EL/-EL2/-EL3 G5Q-EL/-EL2/-EL3 1a 10
G5RL(Standard type) G5RL(Standard type) 1a 12
G5RL(High capacity type) G5RL(High capacity type) 1a 16
G5RL-U/K(NC) G5RL-U/K(NC) 1c 16 (N.O)、5 (N.C)
G5RL-U/K(NO) G5RL-U/K(NO) 1c 16 (N.O)、5 (N.C)
G5RL-U/K G5RL-U/K 1a 16
G5RL-K/U-EL G5RL-K/U-EL 1a 16
G6B(Standard type) G6B(Standard type) 1a 5
G6B(Standard type) G6B(Standard type) 2a 5
G6B(High capacity type) G6B(High capacity type) 1a 8
G6B(High reliability type) G6B(High reliability type) 1a 2
G6B G6B 1a1b 5
G6C G6C 1a 10
G6C G6C 1a1b 8
G6D G6D 1a 5
G6DN G6DN 1a 5

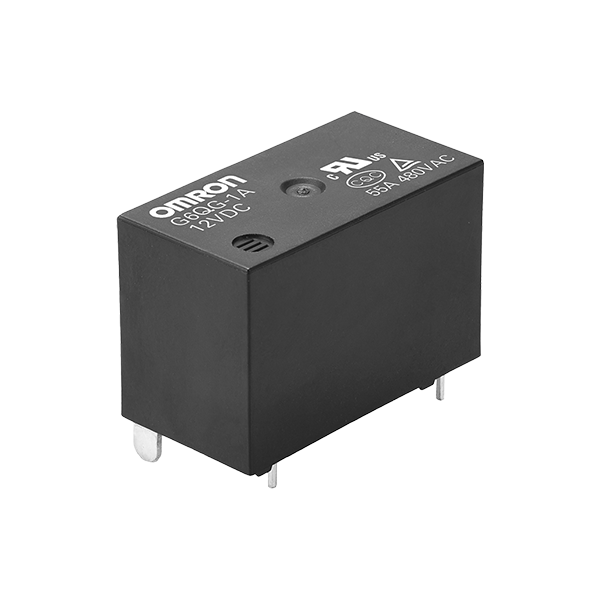

G6QE G6QE 1a 36
G6RL(NC) G6RL(NC) 1a 10(N.O) 8(N.C)
G6RL(NO) G6RL(NO) 1a 10(N.O) 8(N.C)
G6RL(NC) G6RL(NC) 1c 10(N.O) 8(N.C)
G6RL(NO) G6RL(NO) 1c 10(N.O) 8(N.C)

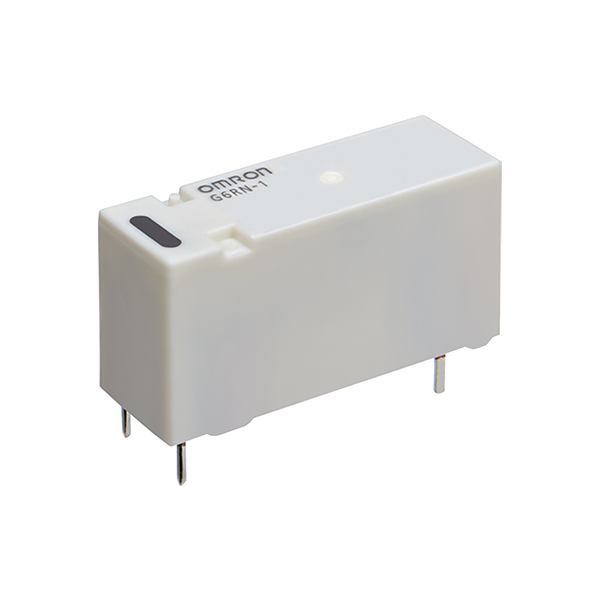

G6RN G6RN 1a 8
G6RN G6RN 1c 8
G7EB G7EB 1a 100
G7L(Screw terminal) G7L(Screw terminal) 1a 30
G7L(Tab terminal) G7L(Tab terminal) 1a 30
G7L(Screw terminal) G7L(Screw terminal) 2a 25
G7L(Tab terminal) G7L(Tab terminal) 2a 25
G7L(PCB terminal) G7L(PCB terminal) 1a 20
G7L(PCB terminal) G7L(PCB terminal) 2a 20
G7L-PV G7L-PV 2a 30
G7L-X(Standard type) G7L-X(Standard type) 2a 30
G7L-X(General purpose type) G7L-X(General purpose type) 2a 20

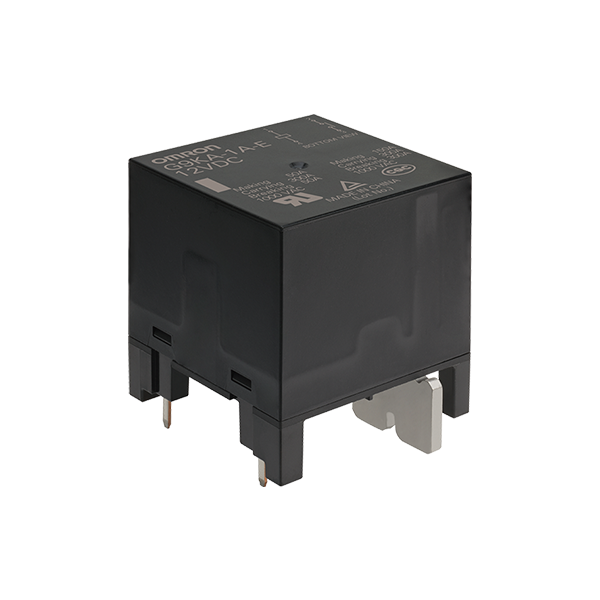

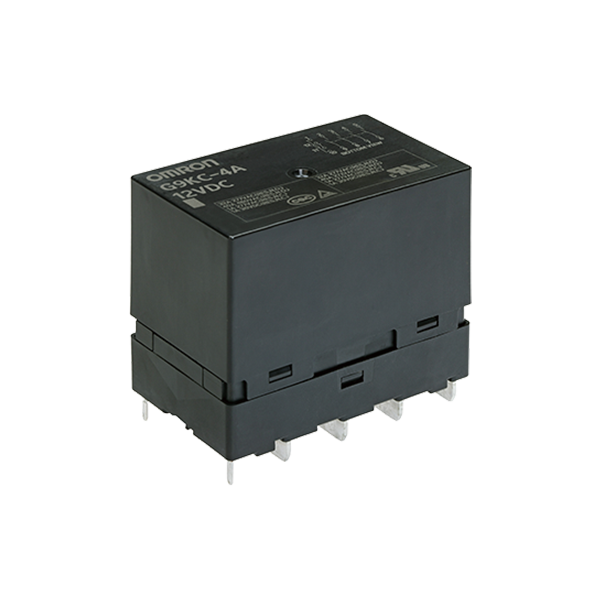

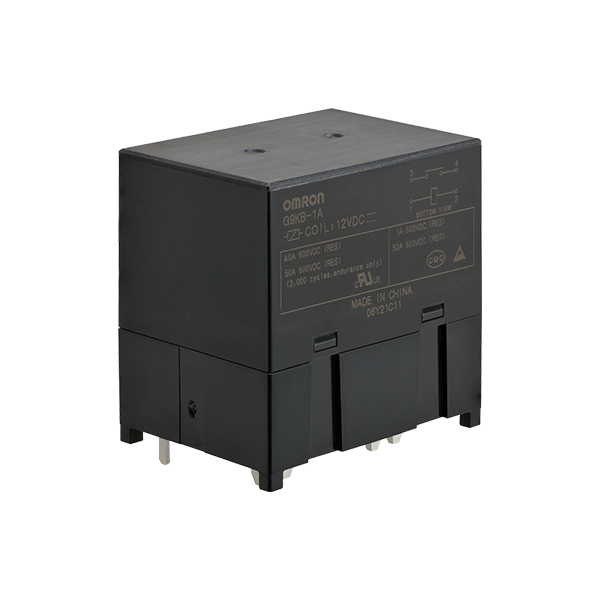

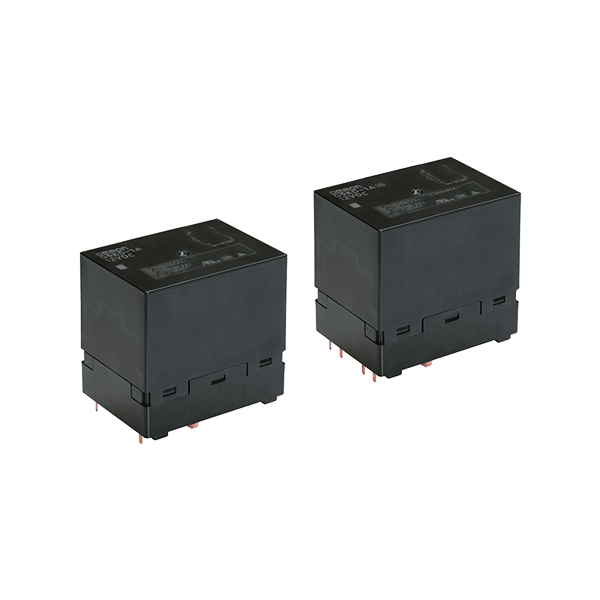

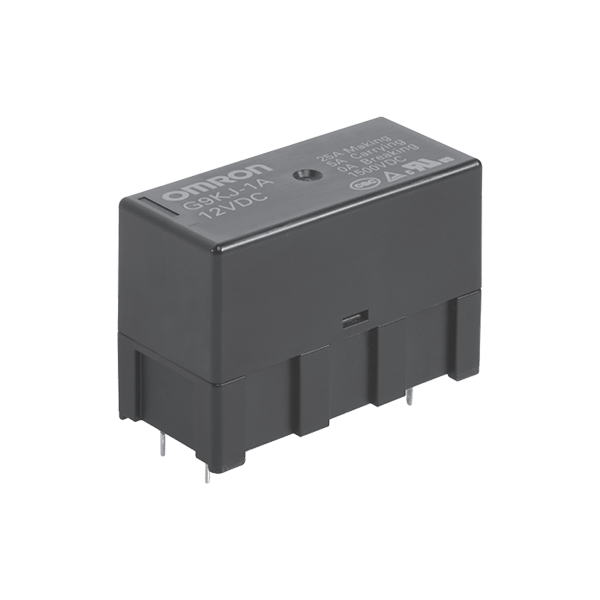

G9KA(Carry current, breaking) G9KA(Carry current, breaking) 1a 200

Power Relays High Capacities Switching

Model Shape Contact form Maximum contact current
G9EA-1(Switching, carry current) G9EA-1(Switching, carry current) 1a 100
G9EA-1-CA(High current carry) G9EA-1-CA(High current carry) 1a 30

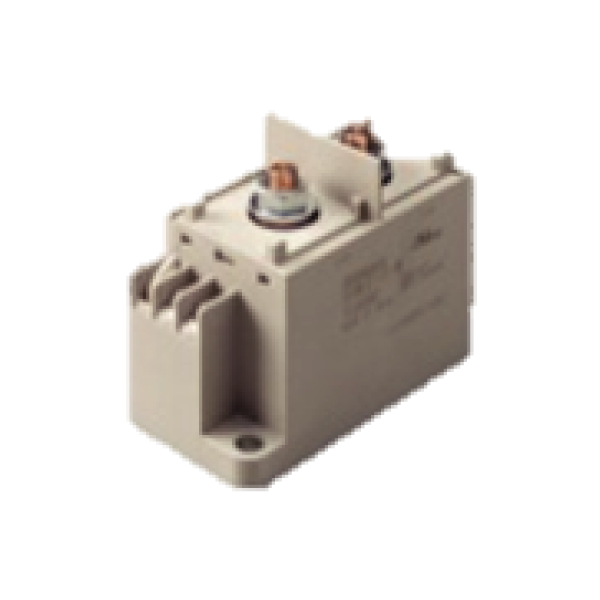

G9EC-1 G9EC-1 1a 200
G9EJ-1-E G9EJ-1-E 1a 15

AC Power Latching Relays

Model Shape Contact form Maximum contact current

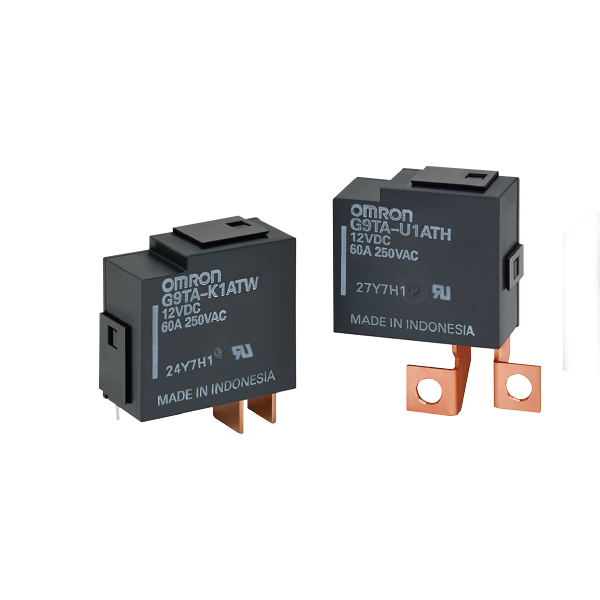

G9TA G9TA 1a 60

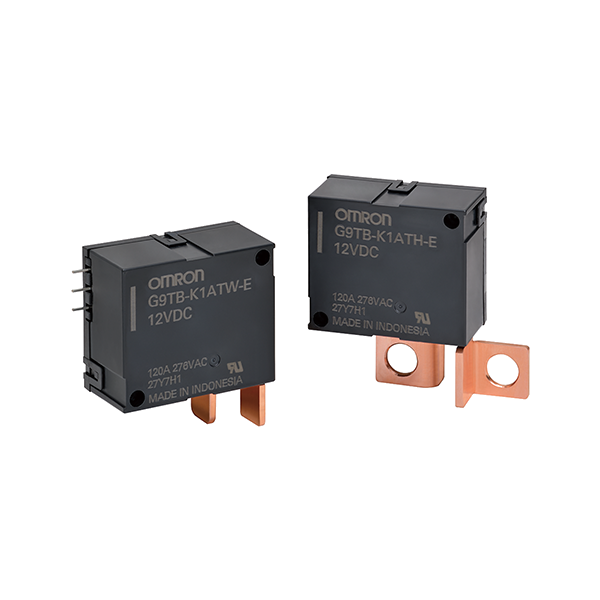

G9TB G9TB 1a 120

DC small power relay

Model Shape Contact form Maximum contact current
G8NB G8NB 1c、1c×2 Inrush:30、Carry current:5 (N.O)
G8K G8K 1c、1c×2 Inrush:30、Carry current(Reference):5 (N.O)
G8NDL G8NDL 1c×2 Inrush:30、Carry current(Reference):5 (N.O)
G8G G8G 1a、1c Inrush:84、Break:12、Carry current20 (N.O)
G8G-SV(24V) G8G-SV(24V) 1c Inrush:20、Break:14、Carry current5 (N.O)
G8PM G8PM 1a Inrush:150、Break:80、Carry current60
G8N G8N 1c Inrush:30、Carry current:5 (N.O)
G8NW G8NW 1c×2 Inrush:30、Carry current:5 (N.O)
G8ND G8ND 1c×2 Inrush:30、Carry current:5 (N.O)
G8HL G8HL 1a Inrush:100、Carry current:20
G8HN-RJ G8HN-RJ 1a、1c Inrush:100、Carry current:20
G8HN-RH G8HN-RH 1a、1c Inrush:120、Carry current:35
