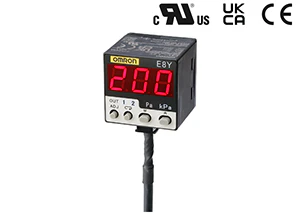

E8Y-L Pressure Display
- New
Micropressure Sensor with
Easy-to-Read Digital Display
- Compact design (31 × 30 × 30 mm) saves mounting space.
- Easy-to-read red LED indicator.
- Analog current output models available (E8Y-L@Y).
- Pressure port Rc (PT) 1/8 models (-R) available.
- EN and UL approved (excluding accessories E89-Y2).
DOWNLOAD
This web page provides an excerpt from a datasheet. Refer to Product Datasheet and other applicable documents for more information. Models for which CAD data is available can be checked from the "Model list".
Catalog
| Data type | File name | Date of update |
|---|---|---|
| Data sheet | Data sheet E8Y-L |
MODEL LIST
Relevant information for each model is listed. CAD data can be downloaded after logging in or registering as a member.
| Model | 2D/3D CAD*1 | ECAD*2 | Buy online | RoHS Certification*3 | Product Status |
|---|---|---|---|---|---|
| E8Y-L2C | Login/Register | Download | In production | ||
| E8Y-L2C-R | Login/Register | Download | In production | ||
| E8Y-L2Y | Login/Register | Download | In production | ||
| E8Y-L2Y-R | Login/Register | Download | In production | ||
| E8Y-L5B | Login/Register | Download | In production | ||
| E8Y-L5C | Login/Register | Download | In production | ||
| E8Y-L5C-R | Login/Register | Download | In production | ||
| E8Y-L5Y | Login/Register | Download | In production | ||
| E8Y-L5Y-R | Login/Register | Download | In production | ||
| E8Y-LR2C | Login/Register | Download | In production | ||
| E8Y-LR2Y | Login/Register | Download | In production | ||
| E8Y-LR5C | Login/Register | Download | In production | ||
| E8Y-LR5Y | Login/Register | Download | In production |
- *1See here for 2D,3D CAD data specifications.
- *2External site (Ultra Librarian) opens in a new window.
Ultra Librarian uniquely created ECAD data based on the information provided by OMRON. Please note that OMRON does not guarantee the accuracy, concurrence or completeness of ECAD data. - *3Rohs Certificate may not be listed.
Please contact us or distributors for products that are not listed.
