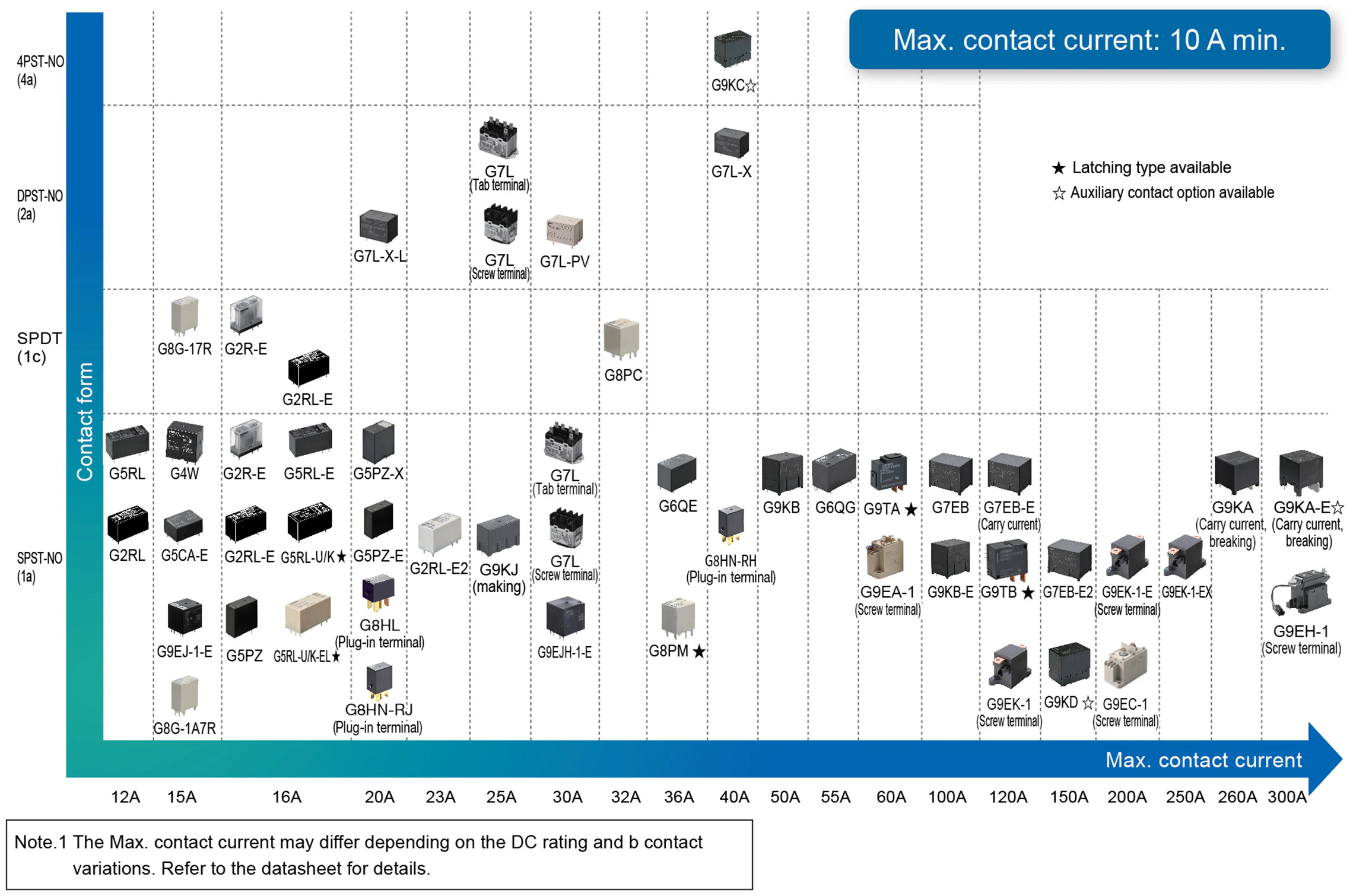

Signal Relays/Power Relays classification table

Signal Relays/Power Relays classification table
Signal Relays/Power Relays classification table

Signal Relay

Model Shape Contact form Maximum contact current
G5V-1 G5V-1 1c 1
G5V-2-H1 G5V-2-H1 2c 1
G5V-2 G5V-2 2c 2
G6A G6A 2c 2
G6J-Y G6J-Y 2c 1
G6K G6K 2c 1
G6K-RF G6K-RF 2c 1
G6K-RF-V G6K-RF-V 2c 1
G6S G6S 2c 2

PCB Power Relays

Model Shape Contact form Maximum contact current
G2R
G2R(Latching Type)		 G2R 1a 10
G2R
G2R(Latching Type)		 G2R 1c 10
G2R
G2R(Latching Type)		 G2R 2a 5
G2R
G2R(Latching Type)		 G2R 2c 5
G2R-E G2R-E 1a 16
G2R-E G2R-E 1c 16
G2RG G2RG 2a 8
G2RG-X G2RG-X 2a 10, 8(carry current)
G2RL G2RL 1a 12
G2RL G2RL 1c 10
G2RL G2RL 2a 8
G2RL G2RL 2c 8
G2RL-E G2RL-E 1a 16
G2RL-E G2RL-E 1c 16
G2RL-E2 G2RL-E2 1a 23
G4W G4W 1a 15
G4W G4W 2a 10
G5CA G5CA 1a 10
G5CA-E G5CA-E 1a 15
G5NB G5NB 1a 3
G5NB-E G5NB-E 1a 5
G5NB-EL G5NB-EL 1a AC：7、DC5
G5PZ G5PZ 1a 16
G5PZ-E G5PZ-E 1a 20
G5Q
G5Q(Latching Type)		 G5Q 1a AC ： 10（N.O.）/3（N.C.）
DC ： 5（N.O.）/3（N.C.）
G5Q(AC NO) G5Q(AC NO) 1c AC ： 10（N.O.）/3（N.C.）
DC ： 5（N.O.）/3（N.C.）
G5Q-EL/-EL2/-EL3 G5Q-EL/-EL2/-EL3 1a 10
G5RL G5RL 1a 12
G5RL-E
G5RL-U/K(Latching Type)		 G5RL-E 1a 16
G5RL-U/K-EL G5RL-U/K-EL 1a 16
G6B
G6B(Latching Type)		 G6B 1a 5
G6B G6B 1a 8
G6B G6B 1a 2
G6B G6B 1a1b 5
G6B G6B 2a 5
G6C
G6C(Latching Type)		 G6C 1a 10
G6C
G6C(Latching Type)		 G6C 1a1b 8
G6D G6D 1a 5
G6DN G6DN 1a 5
G6QE G6QE 1a 36
G6QG G6QG 1a 55
G6RN G6RN 1a 8
G6RN G6RN 1c 8
G6RN-E G6RN-E 1a 10
G6RN-E G6RN-E 1c 10
G7EB G7EB 1a 100
G7EB-E G7EB 1a 100、120(carry current)
G7EB-E2 G7EB 1a 150
G7L(Screw terminal) G7L(Screw terminal) 1a 30
G7L(Tab terminal) G7L(Tab terminal) 1a 30
G7L(Screw terminal) G7L(Screw terminal) 2a 25
G7L(Tab terminal) G7L(Tab terminal) 2a 25
G7L-PV G7L-PV 2a 30
G7L-X G7L-X 2a 40(carry current)
G7L-X-L G7L-X-L 2a 20
G8PC G8PC 1c 32(N.O.)
G9KA G9KA 1a 260(Carry current, breaking)
G9KA-E G9KA 1a 300(Carry current, breaking)
G9KB G9KB 1a 50
G9KB-E G9KB 1a 100
G9KC G9KC 4a 40
G9KD G9KD 1a 150(breaking)
G9KJ G9KJ 1a 25 (making), 5 (breaking)
G9TA G9TA 1a 60
G9TB G9TB 1a 120

Power Relays High Capacities Switching

Model Shape Contact form Maximum contact current
G9EA-1(Screw terminal) G9EA-1(Screw terminal) 1a 100
G9EK-1(Screw terminal) G9EK-1(Screw terminal) 1a 120
G9EK-1-E(Screw terminal) G9EK-1-E(Screw terminal) 1a 200
G9EK-1-EX(Screw terminal) G9EK-1-EX(Screw terminal) 1a 250
G9EC-1(Screw terminal) G9EC-1 1a 200
G9EH-1(Screw terminal) G9EH-1(Screw terminal) 1a 300
G9EJ-1-E(400 VDC) G9EJ-1-E(400 VDC) 1a 15
G9EJH-1-E(800 VDC) G9EJH-1-E(800 VDC) 1a 30

DC small power relay

Model Shape Contact form Maximum contact current
G8NB G8NB 1c、1c×2 Inrush:30、Carry　current:5 (N.O)
G8K G8K 1c、1c×2 Inrush:30、Carry　current(Reference):5 (N.O)
G8NDL G8NDL 1c×2 Inrush:30、Carry　current(Reference):5 (N.O)
G8G G8G 1a、1c Inrush:84、Break:12、Carry　current20 (N.O)
G8G-1SV G8G-1SV 1c Inrush:20、Break:14、Carry　current5 (N.O)
G8PM G8PM 1a Inrush:150、Break:80、Carry　current60
G8PM-K(Latching Type) G8PM 1a Inrush:100、Break:40、Carry current40
G8HL G8HL 1a Inrush:100、Carry　current:20
G8HN-RJ G8HN-RJ 1a、1c Inrush:100、Carry　current:20
G8HN-RH G8HN-RH 1a、1c Inrush:120、Carry　current:35
