Combination of OMRON's technological know-how has resulted in low heat generation even with high capacity / High-capacity PCB power relay with ultra-low contact resistance

The growing awareness of environmental crises such as global warming has accelerated the use of renewable energy sources, including solar power generation. Relays are mainly used in equipment that requires a large current and voltage, such as power conditioners, which are one of the components of photovoltaic power generation systems, for turning current on and off and for safe shutdown in emergency situations.

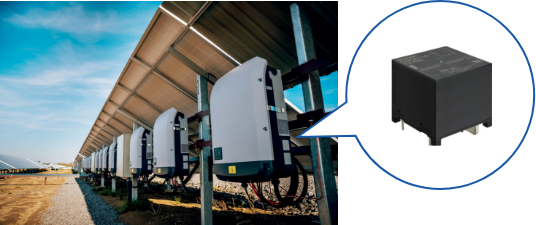

Relays are used in power conditioners (PV inverters) that convert DC power generated by solar power into AC power that can be used in homes, buildings, and factories.

As the demand for higher efficiency in energy utilization continues to grow, so does the capacity of power generation equipment, and relays built into these devices are also required to have higher capacities.

Power conditioner (PV inverter)
A device installed on photovoltaic panels that converts DC power generated by sunlight into AC power for use in homes, buildings, and factories.

High-capacity relays and heat generation issues

In recent years, there have been changes in solar power systems to meet demands. The trend is shifting from centralized systems to decentralized systems as a more stable power supply is required to counter disaster risks such as earthquakes and floods. By distributing power conversion across multiple PV inverters instead of using a single PV inverter, the risk of power generation being halted due to equipment failure can be reduced even in the event of a disaster. Furthermore, individual facilities and equipment are now required to operate efficiently by increasing power generation efficiency through higher capacity and higher current, and by suppressing capital investment through downsizing and weight reduction.
On the other hand, as downsizing and higher capacities continue to advance, the urgent issue is to reduce the heat generated by the equipment itself, which is a factor in energy loss and reduction of the equipment's service life.

1.Reducing risk in the event of breakdowns and disasters. 2.Decentralization. 3.Lower cost and higher efficiency by smaller size and higher capacity. 4.Smaller size & higher capacity.

A barrier to downsizing and higher capacity is the heat generated in the equipment.
If the current doubles due to higher capacity, the amount of heat generated will quadruple.
The heat generated by the equipment can cause malfunctions and shorten the life of the PCB. Therefore, relays that carry large currents in the 200A class require heat dissipation mechanisms such as fans and heat sinks, and the devices themselves tend to be large in size.

[Heat generation = Current2 x Resistance]100A relay->(Amount of heat generated quadruples)200A relay
G9KA high capacity PCB power relay 47.2mm✕51mm✕51mm

The G9KA high-capacity power relay was developed to solve this heat generation problem. G9KA's industry-leading* ultra-low contact resistance of 0.2 mΩ suppresses heat generation, a major challenge in downsizing and high capacity.

* According to OMRON’s research in July 2021

Also, its compact size, about 1/3 of the height compared to contactors of similar current capacity, contributes to downsizing and space saving of equipment.

Contactor applied:H approx. 140 mm / PCB relay applied(G9KA):H approx. 47 mm[Height approx. 1/3]

Realizing ultra-low contact resistance and low heat generation

The lower the contact resistance, the less heat is generated. In contrast to conventional high-capacity relays with an initial contact resistance of 1 to 5 mΩ (actual value of about 0.4 mΩ), G9KA has reduced the standard value to 0.2 mΩ, 1/5 of the standard value, by reducing the center value and variation.
As a result, the temperature rise can be reduced by about 30% compared to relays with comparable general performance. Furthermore, it maintains stable contact resistance (reference value) in switching durability evaluation, and contributes to heat generation issues with significantly lower contact resistance compared to conventional relays with equivalent performance.

Initial contact resistance is
industry-leading 0.2 mΩ

<Simulation conditions>
480 VAC/200A, ambient temperature 85°C, fans, ducts, and heat sinks used, one on board.

Contact resistance of 0.3 mΩ or less maintained even after electrical durability testing

<Evaluation conditions>
Switching conditions (resistive load): 800 VAC, 50 A connected, 200 A energized, 50 A cutoff
Coil voltage conditions: When connected, 12 V (100%) is applied and then maintained at 6 V (50% holding voltage)
Ambient temperature: 85°C
Contact resistance test condition: 200 A 30 minutes after energizing

A lot of value comes from hard to generate heat

G9KA can solve a variety of customer problems because it "generates less heat".

Its low heat generation allows for a high-capacity design of 800V/200A at a size of 51 x 51 x 47.2 mm without worrying about heat generation issues.
Its low heat generation reduces PCB damage and energy loss due to thermal stress.
Its low heat generation reduces the need for heat dissipation designs such as fans and heat sinks, thereby reducing design man-hours, equipment size, and costs.

[Because of its low heat generation]Long life:Reduced PCB damage due to heat generation extends machine life、Cost reduction:Reduction of heat dissipation mechanism and replacement from contactors enables product downsizing and cost reduction、Higher design efficiency:Simpler design by reducing the heat dissipation mechanisms such as fans and heat sinks, thereby reducing the time and man-hours required for heat dissipation design.、Supporting high capacity applications:Energizing and de-energizing 800V/200A, far exceeding the specifications of OMRON's existing high-capacity products、Energy-saving:Higher power generation efficiency by reducing energy waste due to heat generation(Gets hot and parts break down>Need to limit the output of the power conditioner>Low power generation efficiency:Energy is lost by turning into thermal energy、Downsizing:Simplified heat dissipation structure reduces PCB area

OMRON's advanced technology that produces “low heat generation even with high capacity”

OMRON has realized two contradictory performances, "high capacity 800V/200A" and "low heat generation", by combining OMRON's long-standing technical know-how.

Technical pickup ①:Optimization of contact materials and contact switching structure to reduce heat generation

[Low contact resistance]Pure Ag < Ag + Additive、[High weldability]Pure Ag > Ag + Additive

To achieve the targeted low contact resistance, G9KA uses pure Ag-based contacts with Ag content of 99% or higher.
In general, the contact resistance is pure Ag contacts < Ag contacts with additives, but the opposite is true for weld resistance. In conventional relays used for switching loads, contact welding due to arcing was prevented by selecting contact materials with additives, but the contact resistance increased to several tens of mΩ.

G9KA uses a plunger-type relay structure to prevent contact welding.
The impact force generated by the stopper being swung down like a hammer ensures that the weld can be pulled away, thus realizing reliable contact stripping even for contact materials that are prone to welding.

Technical pickup ②:Parallelization of contacts to reduce heat generation

G9KA uses a bifurcated contact structure. By paralleling the current paths, the current can be shunted and the heat generation can be suppressed by reducing the current per path.

[Single contact]

【Heat generation】
Qsgl = CR1*(200A)2*t
= CR1*4*104 *t

[Bifurcated contact]

【Heat generation】
= Amount of heat generated 1/2
Qtwn = CR1*(100A)2 *t *2 contacts
= CR1*2*104*t

Technical pickup ③:Achieving high current cutoff performance in a compact size without increasing the size of the coil

G9KA uses a double-break structure for its switching.
The cutoff performance of a contact is determined by the contact spacing. For high-capacity PV inverters, the standard requires a contact spacing of 3.6 mm or more. The greater the distance between contacts, the larger the coil that drives the relay. The double-break structure has two contact points, effectively doubling the contact spacing. Without increasing the size of the coil, it is now possible to energize and de-energize 800V 200A in a compact size.

【Single break structure】

【Double break structure】

Ensuring contact spacing of 4 mm in total

G9KA meets the needs of high capacity applications

How about OMRON's G9KA for devices that require "high capacity but generate as little heat as possible"?

Power conditioners for industrial photovoltaic power generation

EV quick charger

Robot control equipment

Battery (UPS)

Industrial air conditioning
