G9KC PCB Power Relays
- New

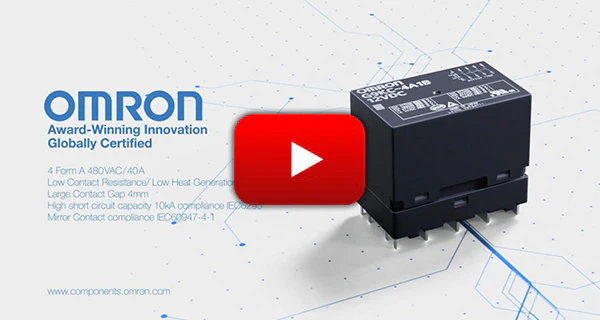

480 VAC 40 A 4-pole High Power Relay
with Low Contact Resistance
- Low initial contact resistance: 6 mΩ max.
- 4-pole 40 A switching with compact size: W35 mm x L58 mm x H47 mm
- Contact gap: 3.6 mm min.
- High short circuit capacity compliant with IEC62955
- Low coil power consumption: approx. 613 mW with holding voltage 35%
- Auxiliary contact compliant with IEC60947-4-1 mirror contact requirement
Related Contents
DOWNLOAD
This web page provides an excerpt from a datasheet. Refer to Product Datasheet and other applicable documents for more information. Models for which CAD data is available can be checked from the "Model list".
Catalog
| Data type | File name | Date of update |
|---|---|---|
| Data sheet | Data sheet G9KC | |
| Precautions | Safety Precautions for All PCB Relays | |
| Selection Guide | Electrical Mechanical Relay Selection Guide | |
| Technical information | The SOLUTIONS [Mechanical PCB Relay Edition] Membership Only |
Whitepaper
| Data type | File name | Date of update |
|---|---|---|
| White Paper | G9KC White Paper Download |
MODEL LIST
Relevant information for each model is listed. CAD data can be downloaded after logging in or registering as a member.
| Model | 2D/3D CAD*1 | ECAD*2 | Buy online | RoHS Certification | Product Status |
|---|---|---|---|---|---|
| G9KC-4A | Login/Register | Login/Register | Download | In production | |
| G9KC-4A1B | Login/Register | Login/Register | Download | In production |
- *1See here for 2D,3D CAD data specifications.
- *2External site (Ultra Librarian) opens in a new window.
Ultra Librarian uniquely created ECAD data based on the information provided by OMRON. Please note that OMRON does not guarantee the accuracy, concurrence or completeness of ECAD data. - *3Rohs Certificate may not be listed.
Please contact us or distributors for products that are not listed.
