Signal Relays/Power Relays classification table

Signal Relays/Power Relays classification table
Signal Relays/Power Relays classification table

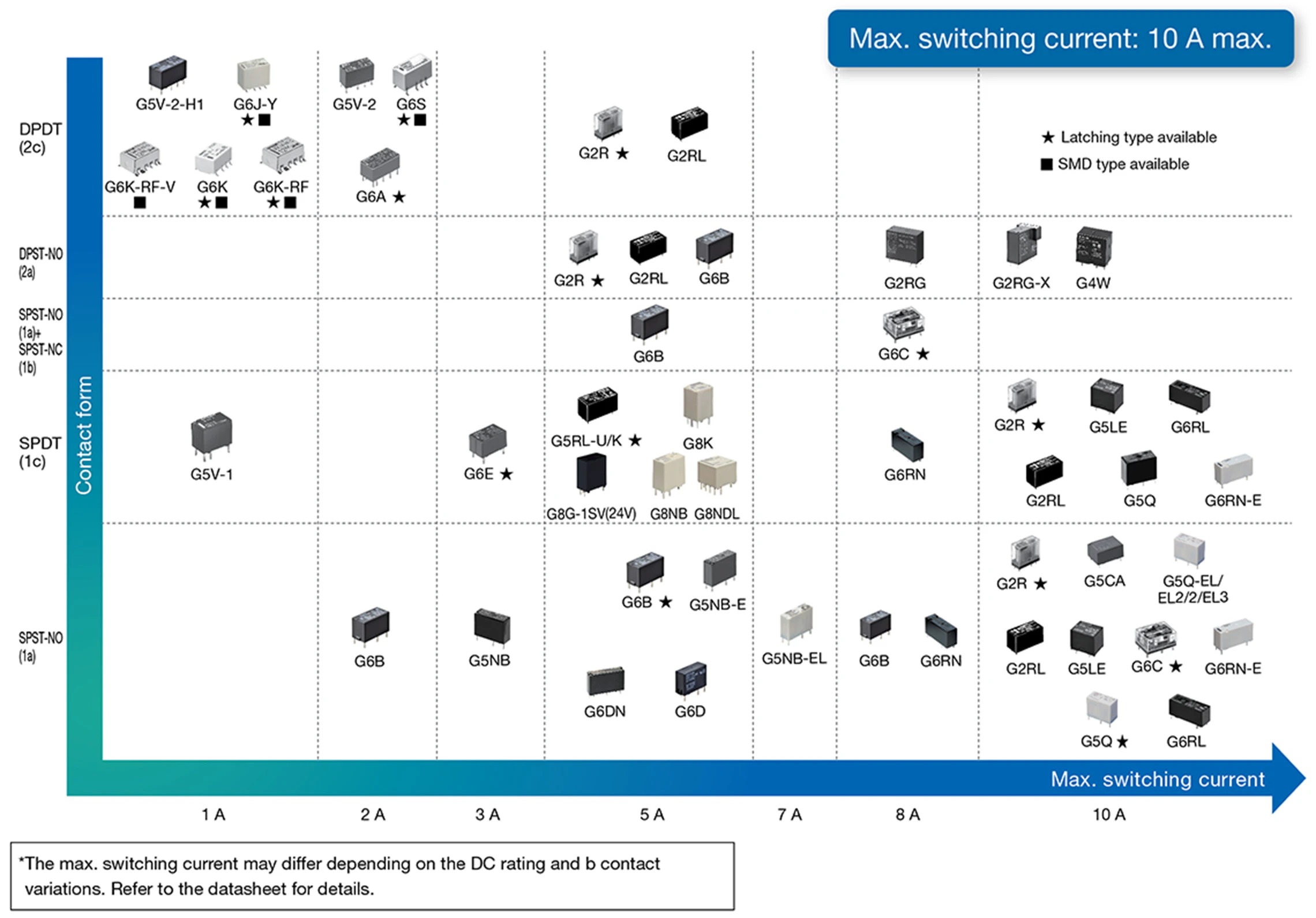

Signal Relay

Model Shape Contact form Maximum contact current
G5V-1 G5V-1 1c 1
G5V-2-H1 G5V-2-H1 2c 1
G5V-2 G5V-2 2c 2
G6A G6A 2c 2
G6E G6E 1c 3
G6J-Y G6J-Y 2c 1
G6K G6K 2c 1
G6K-RF G6K-RF 2c 1
G6K-RF-V G6K-RF-V 2c 1
G6S G6S 2c 2

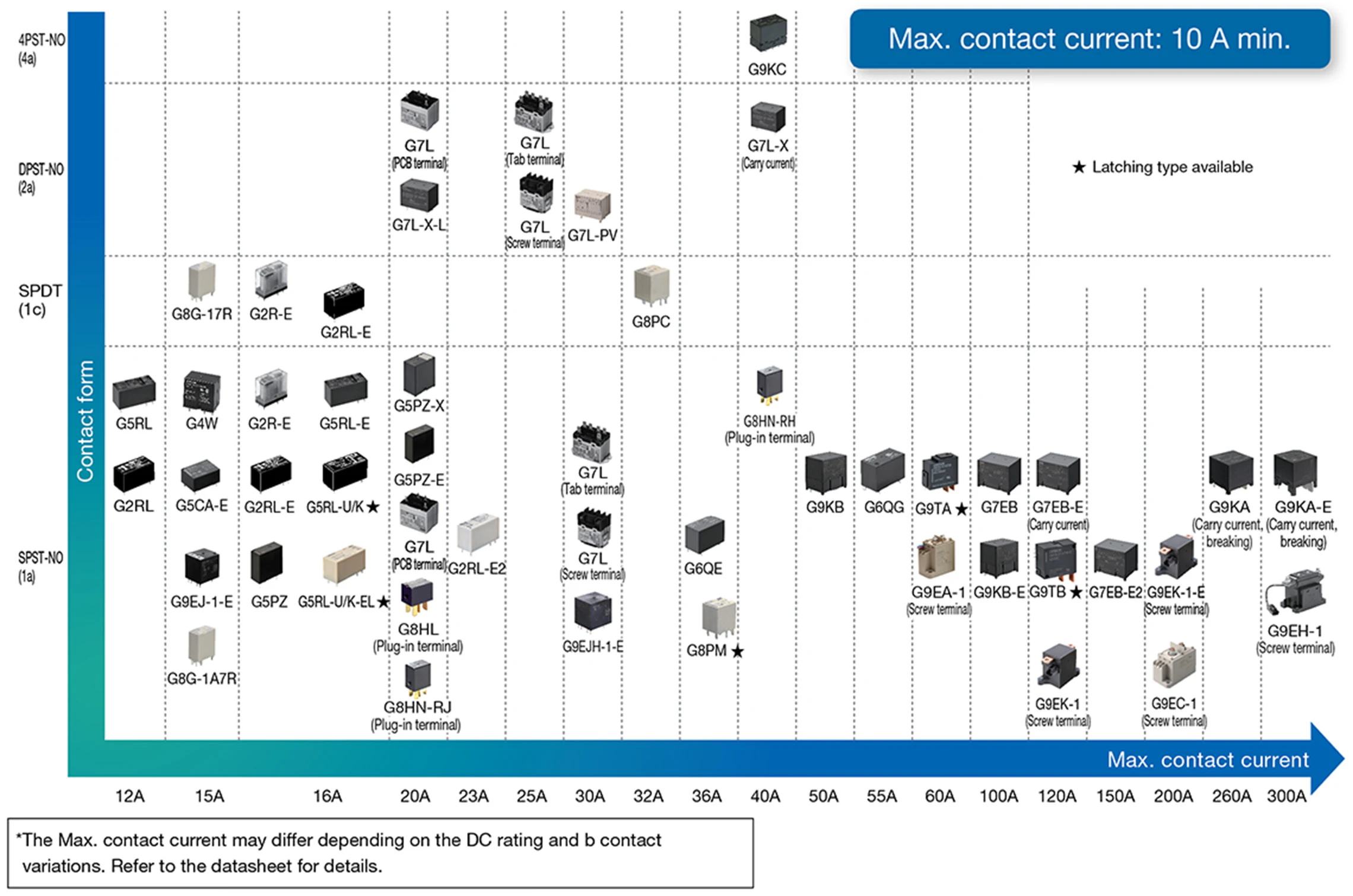

PCB Power Relays

Model Shape Contact form Maximum contact current
G2R
G2R(Latching Type)		 G2R 1a 10
G2R
G2R(Latching Type)		 G2R 1c 10
G2R
G2R(Latching Type)		 G2R 2a 5
G2R
G2R(Latching Type)		 G2R 2c 5
G2R-E G2R-E 1a 16
G2R-E G2R-E 1c 16
G2RG G2RG 2a 8
G2RG-X G2RG-X 2a 10, 8(carry current)
G2RL G2RL 1a 12
G2RL G2RL 1c 10
G2RL G2RL 2a 8
G2RL G2RL 2c 8
G2RL-E G2RL-E 1a 16
G2RL-E G2RL-E 1c 16
G2RL-E2 G2RL-E2 1a 23
G4W G4W 1a 15
G4W G4W 2a 10
G5CA G5CA 1a 10
G5CA-E G5CA-E 1a 15
G5NB G5NB 1a 3
G5NB-E G5NB-E 1a 5

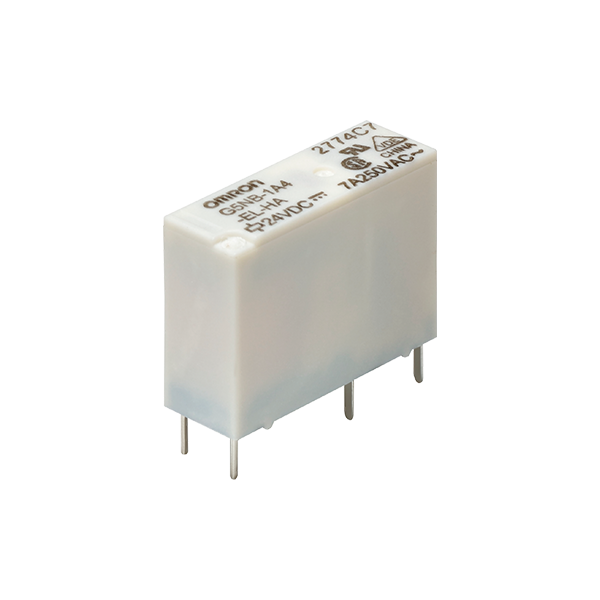

G5NB-EL G5NB-EL 1a AC：7、DC5
G5PZ G5PZ 1a 16
G5PZ-E G5PZ-E 1a 20
G5Q
G5Q(Latching Type)		 G5Q 1a AC ： 10（N.O.）/3（N.C.）
DC ： 5（N.O.）/3（N.C.）

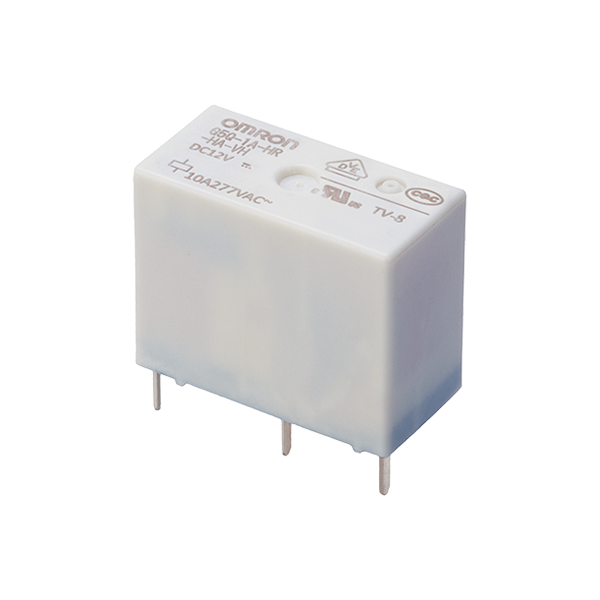

G5Q G5Q 1c AC ： 10（N.O.）/3（N.C.）
DC ： 5（N.O.）/3（N.C.）

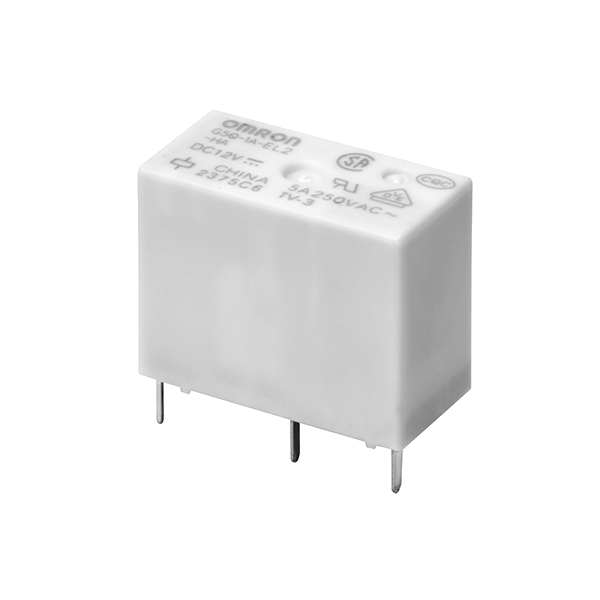

G5Q-EL/-EL2/-EL3 G5Q-EL/-EL2/-EL3 1a 10
G5RL G5RL 1a 12
G5RL-E
G5RL-U/K(Latching Type)		 G5RL-E 1a 16
G5RL-U/K-EL G5RL-U/K-EL 1a 16
G6B
G6B(Latching Type)		 G6B 1a 5
G6B G6B 1a 8
G6B G6B 1a 2
G6B G6B 1a1b 5
G6B G6B 2a 5
G6C
G6C(Latching Type)		 G6C 1a 10
G6C
G6C(Latching Type)		 G6C 1a1b 8
G6D G6D 1a 5
G6DN G6DN 1a 5
G6QE G6QE 1a 36

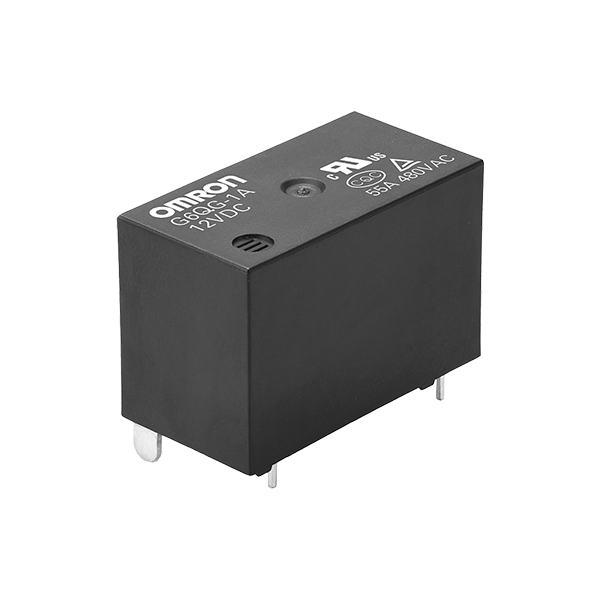

G6QG G6QG 1a 55
G6RL G6RL 1a 10（N.O） 8（N.C）
G6RL G6RL 1c 10（N.O） 8（N.C）
G6RN G6RN 1a 8
G6RN G6RN 1c 8

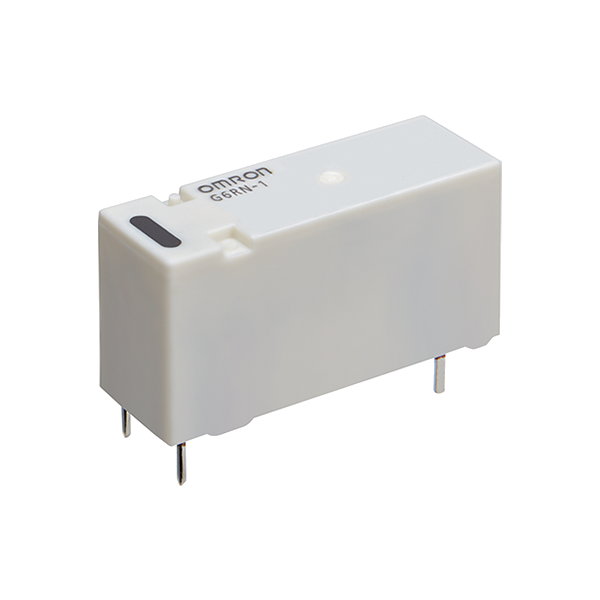

G6RN-E G6RN-E 1a 10
G6RN-E G6RN-E 1c 10
G7EB G7EB 1a 100
G7EB-E G7EB 1a 100、120(carry current)
G7EB-E2 G7EB 1a 150
G7L(Screw terminal) G7L(Screw terminal) 1a 30
G7L(Tab terminal) G7L(Tab terminal) 1a 30
G7L(Screw terminal) G7L(Screw terminal) 2a 25
G7L(Tab terminal) G7L(Tab terminal) 2a 25
G7L(PCB terminal) G7L(PCB terminal) 1a 20
G7L(PCB terminal) G7L(PCB terminal) 2a 20
G7L-PV G7L-PV 2a 30
G7L-X G7L-X 2a 40(carry current)
GG7L-X-L GG7L-X-L 2a 20
G8PC G8PC 1c 32(N.O.)
G9KA G9KA 1a 260(Carry current, breaking)

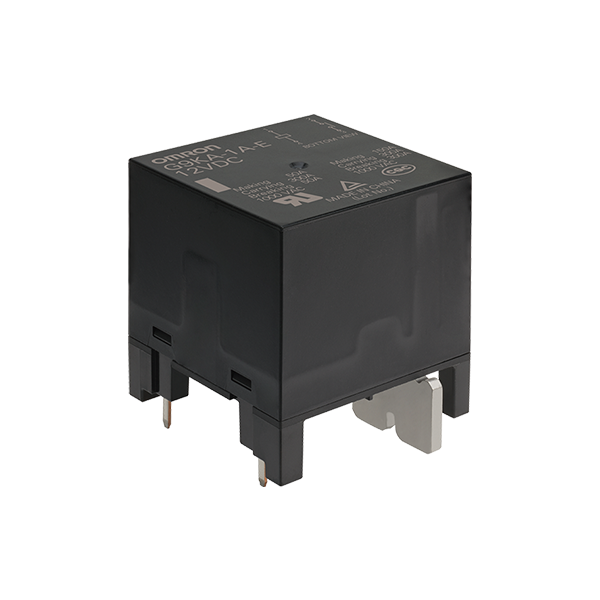

G9KA-E G9KA 1a 300(Carry current, breaking)

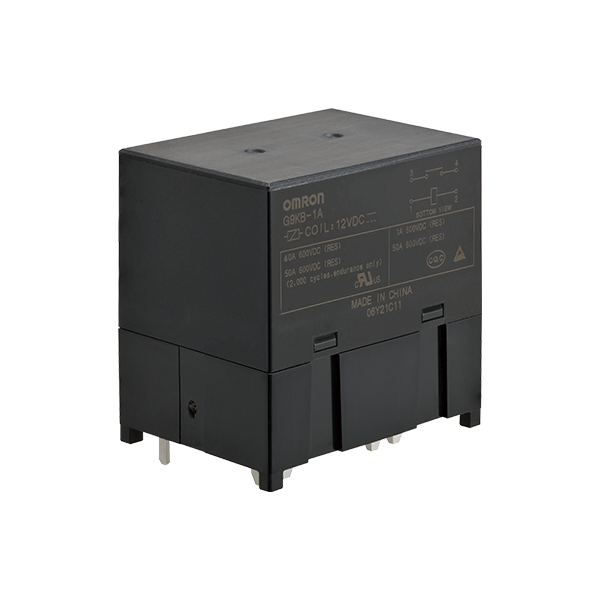

G9KB G9KB 1a 50
G9KB-E G9KB 1a 100
G9KC G9KC 4a 40

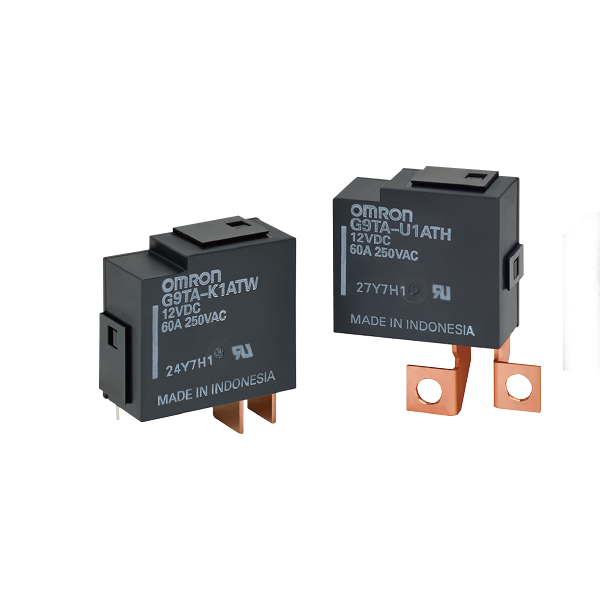

G9TA G9TA 1a 60

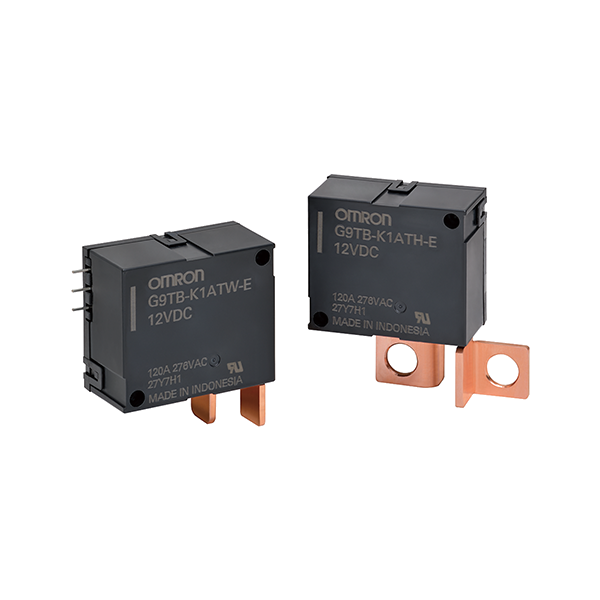

G9TB G9TB 1a 120

Power Relays High Capacities Switching

Model Shape Contact form Maximum contact current
G9EA-1(Screw terminal) G9EA-1(Screw terminal) 1a 100
G9EK-1(Screw terminal) G9EK-1(Screw terminal) 1a 120
G9EK-1-E(Screw terminal) G9EK-1-E(Screw terminal) 1a 200
G9EC-1(Screw terminal) G9EC-1 1a 200
G9EH-1(Screw terminal) G9EH-1(Screw terminal) 1a 300
G9EJ-1-E(400 VDC) G9EJ-1-E(400 VDC) 1a 15
G9EJH-1-E(800 VDC) G9EJH-1-E(800 VDC) 1a 30

DC small power relay

Model Shape Contact form Maximum contact current
G8NB G8NB 1c、1c×2 Inrush:30、Carry　current:5 (N.O)
G8K G8K 1c、1c×2 Inrush:30、Carry　current(Reference):5 (N.O)
G8NDL G8NDL 1c×2 Inrush:30、Carry　current(Reference):5 (N.O)
G8G G8G 1a、1c Inrush:84、Break:12、Carry　current20 (N.O)
G8G-1SV G8G-1SV 1c Inrush:20、Break:14、Carry　current5 (N.O)
G8PM G8PM 1a Inrush:150、Break:80、Carry　current60
G8PM-K(Latching Type) G8PM 1a Inrush:100、Break:40、Carry current40
G8HL G8HL 1a Inrush:100、Carry　current:20
G8HN-RJ G8HN-RJ 1a、1c Inrush:100、Carry　current:20
G8HN-RH G8HN-RH 1a、1c Inrush:120、Carry　current:35
