G3VM-31QR/61QR2/101QR1 MOS FET Relays S-VSON(L) 4Pin, High-current and Low-ON-resistance Type
Compact S-VSON(L) Package
MOS FET Relays with High
Capacity Switching

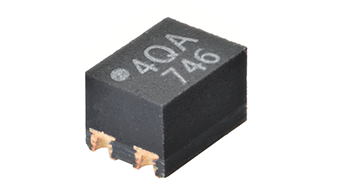

Note: The actual product is marked differently from the image shown here.
- A compact L2.0 × W1.45 × H1.3 mm S-VSON(L) package helps to reduce the space required by circuit boards.
- Weighs just 0.01 g per item, helping to reduce the weight of the circuit boards.
-
Load voltage 30 V/60 V/100 V.
30-V Relay: Continuous load current of 1.5 A max.
60-V Relay: Continuous load current of 1.0 A max.
100-V Relay: Continuous load current of 0.65 A max.
- High Ambient operating temperature: -40°C to +110°C
DOWNLOAD
This web page provides an excerpt from a datasheet. Refer to Product Datasheet and other applicable documents for more information. Models for which CAD data is available can be checked from the "Model list".
Catalog
| Data type | File name | Date of update |
|---|---|---|
| Data sheet | Data sheet G3VM-31QR/61QR2/101QR1 | |
| Precautions | Common Precautions for All MOS FET Relays | |
| Selection Guide | G3VM MOS FET RELAYS SELECTION GUIDE | |
| Technical information | Troubleshooting case studies [MOS FET Relay] | |
| Software | Simulation Model |
MODEL LIST
Relevant information for each model is listed. CAD data can be downloaded after logging in or registering as a member.
| Model | SamacSys3D/ECAD*1 | Ultra Librarian3D/ECAD*2 | OMRON2D/3D CAD*3 | Buy online | RoHS Certification*4 | Product Status |
|---|---|---|---|---|---|---|
| G3VM-101QR1 | Login/Register | Login/Register | Download | In production | ||
| G3VM-101QR1(TR05) | Download | In production | ||||
| G3VM-31QR | Login/Register | Login/Register | Download | In production | ||
| G3VM-31QR(TR05) | Download | In production | ||||
| G3VM-61QR2 | Login/Register | Login/Register | Download | In production | ||
| G3VM-61QR2(TR05) | Download | In production |
