B5W-LB series Light Convergent Reflective Sensor

Reliable Detection of Shiny, Black or Transparent objects. Light Convergent Reflective sensor for embedding in 24 VDC equipment

Features of B5W-LB

Miniature type: B5W-LB2□／Super miniature type: B5W-LB1□
Three features: Robustness of color, Robustness of distance and Lineup

Applications

Container detection

Analysis equipment

Analysis equipment

Printed paper detection

Printing equipment

Printing equipment

Tablet package detection

Tablet packagers

Tablet packagers

Cup detection

Coffee makers

Coffee makers

Article detection inside boxes

Delivery boxes

Delivery boxes

Hand detection

Sanitation equipment

Sanitation equipment

Robustness of color

Stable detection for of shiny, black or transparent objects

Past problem → Solution
Light Convergent Reflective Sensor Principles

Unaffected by backgrounds, meaning only the intended object is sensed accurately

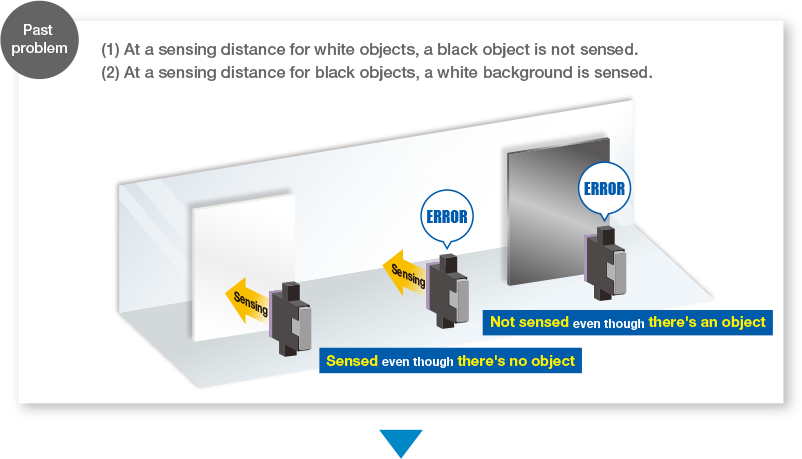

Past problem
Solution! Objects can be sensed accurately, regardless of object color.

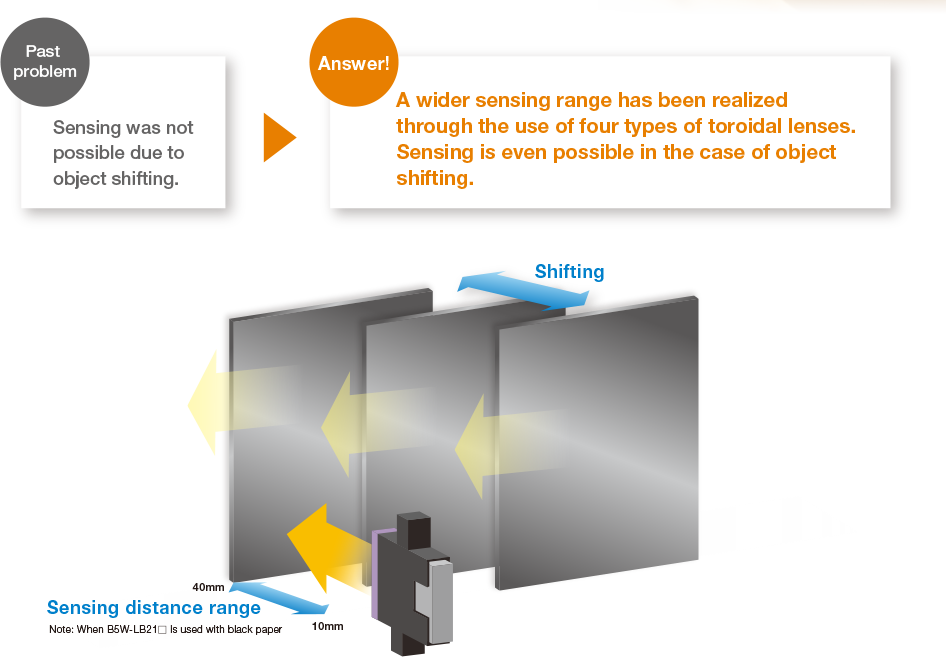

Robustness of distance

A wide sensing range to allow object shifting

Past problem → Solution!
Optical simulations were used in the design of these lenses to provide robustness in terms of both color and distance.Lens design using optical simulation.

Lineup

Suitable for embedding in commercial equipment

Lineup
24VDC, Connects easily, Environmental resistance
Performance comparison with conventional sensors
