vol.300 January 2026
We help you smoothly select components through web-based operations.
OMRON’s electronic and mechanical components feature a wide lineup of over 20,000 models. Consequently, customers may take time to select products with specifications that suit their needs from among many options.
OMRON assists you in selecting components with its “Parametric Search,” a search service that helps anyone smoothly find the products they are looking for.
There are so many options that it’s time-consuming to choose…
In such a case, use Parametric Search. Simply select the items to find the product you’re looking for!

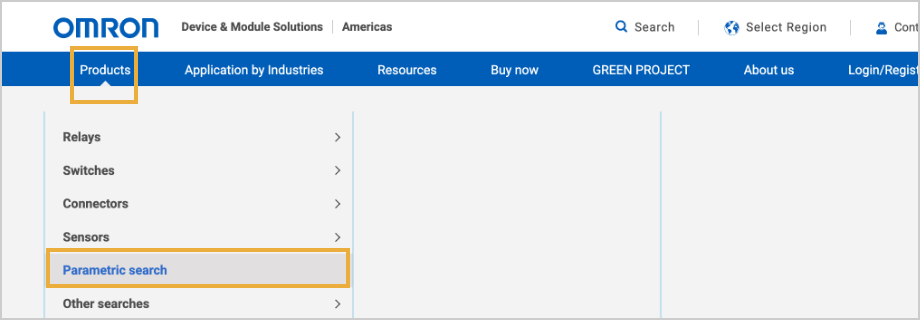

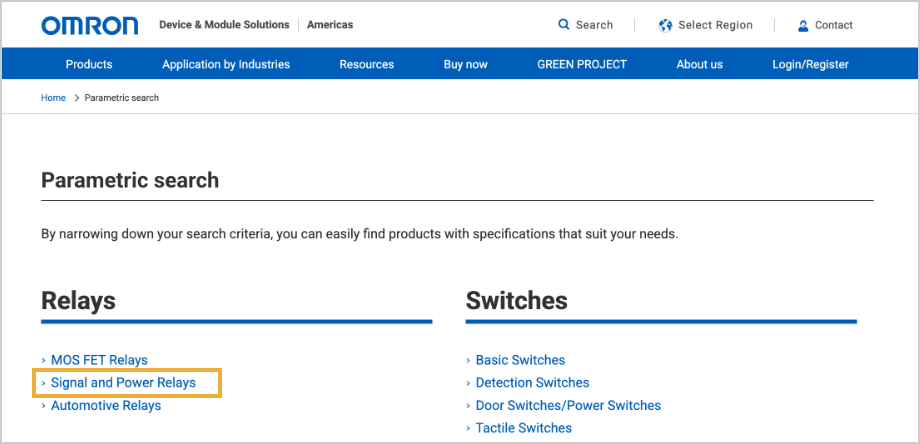

First, use Parametric Search to quickly narrow down your options.
For example, when selecting a relay, you narrow down the models by choosing the relay’s “rated current,” “rated voltage,” “coil rating,” and “contact configuration.”
Just select each item

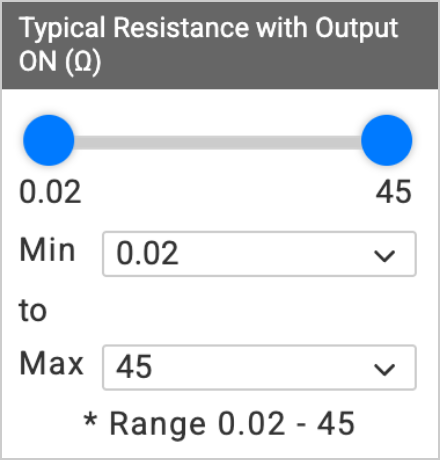

Even for MOS FET relays with many options in the item, parameters such as load voltage (V) and continuous load current (mA) can be set within specified ranges.

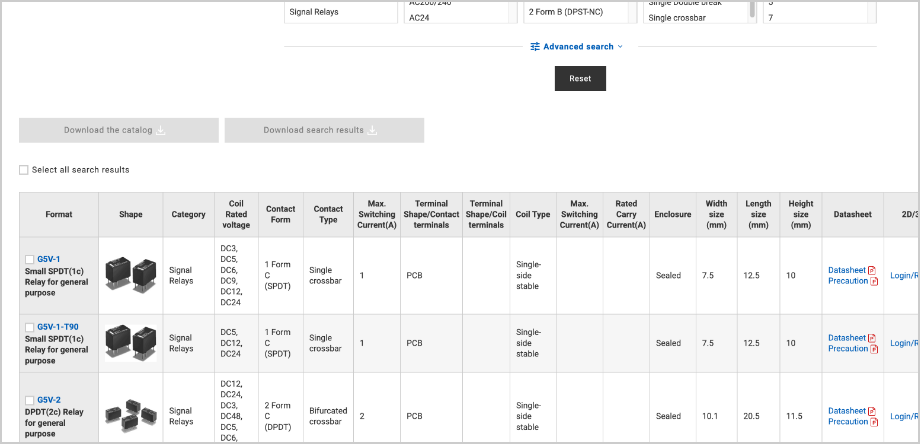

Candidate products are displayed at the bottom of the page
Quick tip
It may be difficult to tell the difference between the displayed product candidates just by comparing their specifications. The suffixes “-PW” or “-CF” at the end of the model name indicate standards or specifications defined by OMRON’s model standards, so please check them when selecting.
- -CF Coil Insulation (UL1446) Class F
- -EL for resistive loads
- -PW Holding voltage, PWM control compatible
- -HA Compliant with international safety standard for ignition resistance (IEC/EN 60335-1)

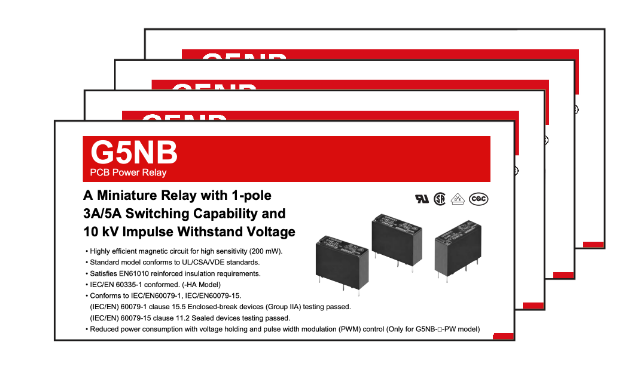

Next, check the details of the narrowed-down products in the data sheet and download related data
Narrowed-down product data can be downloaded in bulk, allowing you to compare the details.
Data sheet (PDF)

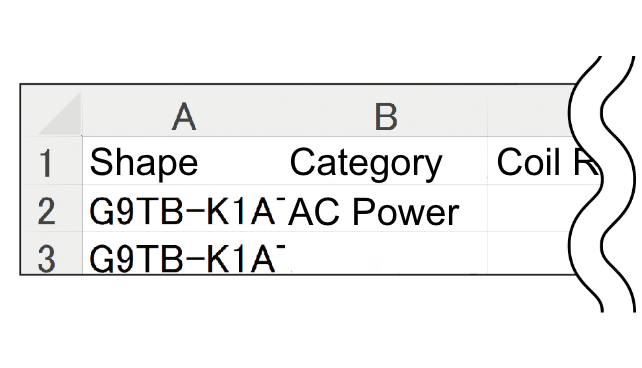

Search results list (CSV)

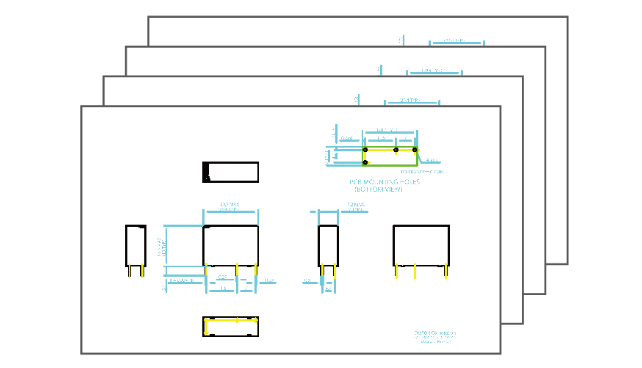

CAD data*1
*1. Only available to OMRON Electronic Components website members.
* Contents as of December 2025.
In the interest of product improvement, specifications are subject to change without notice
