Ultra-Compact DPDT Slim Relay,
Supports Area-Saving and High-Density Mounting Surface-Mounting Relay
G6J-Y

Contact Us

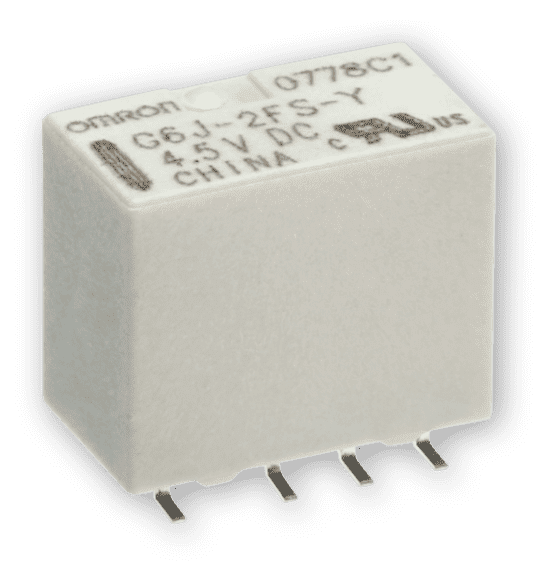

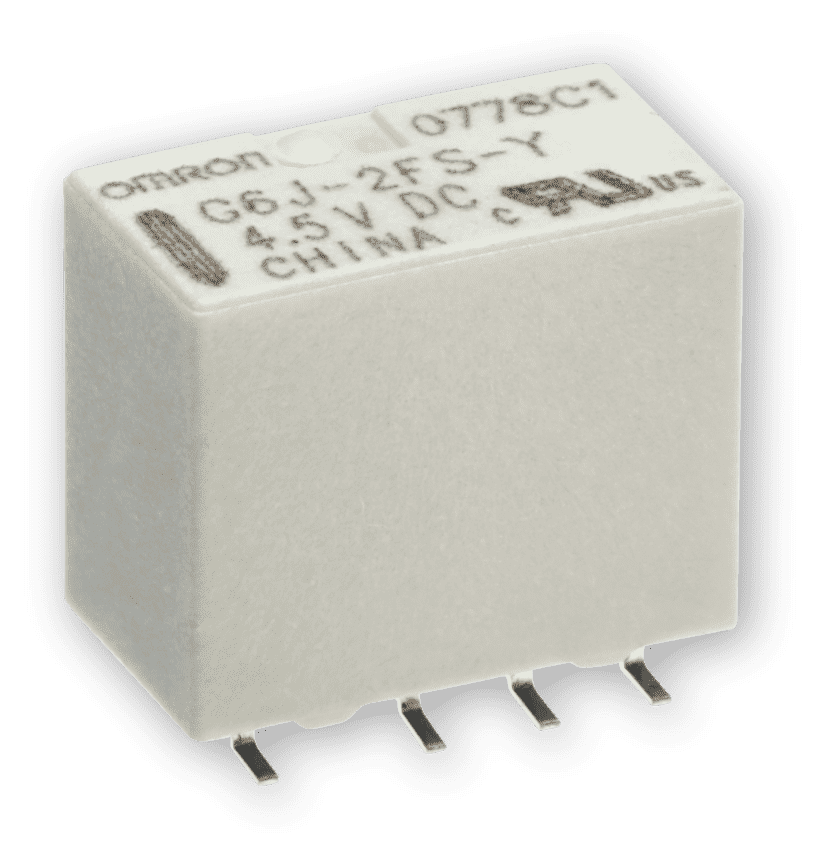

G6J-Y Relay
Product Features

01Reduces Component Count

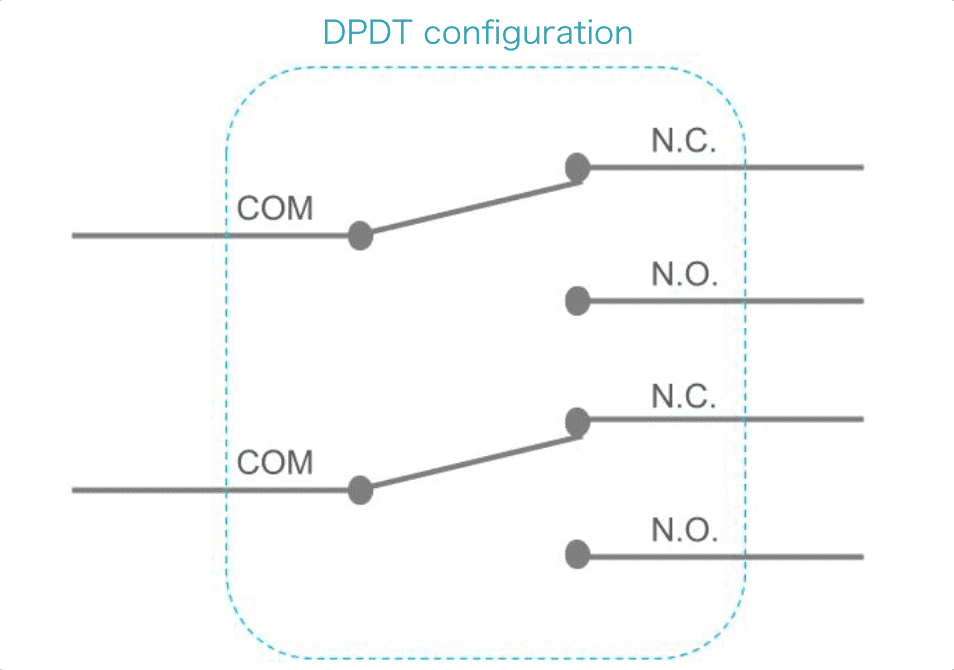

Double-Pole, Double-Throw configuration enables multiple simultaneous switching with a single relay. It contributes to reducing the number of parts in equipment.

02 Contributes to Power Saving

Single winding coil latching type with a contact state holding function is also available, which contributes to power saving of equipment by reducing the control power of the relay.

Operation Timing Chart of Single Winding Coil Latching Type

＊Click To Enlarge Image

03 Supports Mounting on Small Devices and High Integration

The extremely small mounting area contributes to mounting on small devices and high integration of boards.

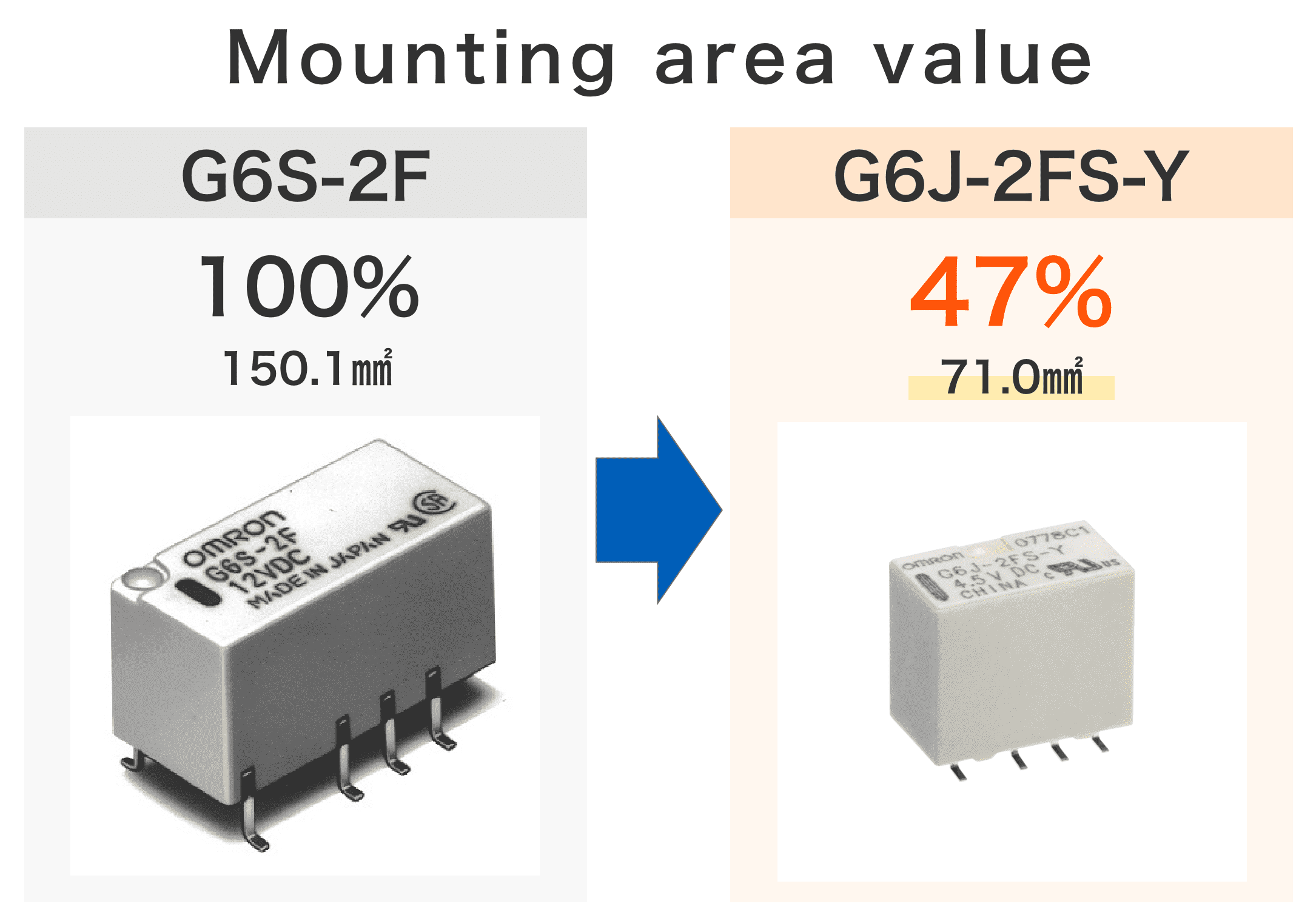

Mounting area value : G6S-2F 100% 150.1mm2 / G6J-2FS-Y 47% 71.0mm2

G6J-Y Terminal
Types and Variations

G6J-2P-Y PCB terminals
G6J-2FL-Y Surface-Mounting terminals,
long
G6J-2FS-Y Surface-Mounting terminals,
short

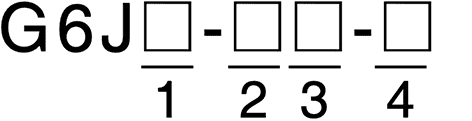

Model Number Legend

1. Relay function None: Single-side stable relay
U: Single-winding latching relay
2. Number of contact poles/ Contact form 2: 2-pole/DPDT (2c)
3. Terminal shape P: PCB terminals
FS: Surface-Mounting terminals, short
FL: Surface-Mounting terminals, long
4. Special function Y: Improved product for soldering heat resistance

Ordering Information

Please swipe the table.

Packing			Tube packing			Tape packing
Relay function	Protective structure	Contact form	Model	Rated coil voltage	Minimun packing unit	Model	Rated coil voltage	Minimun packing unit	Minimum ordering unit (tape packing)
Single-side stable	Fully sealed	DPDT	G6J-2P-Y	DC3	50 pcs/tube	－	DC3	400 pcs/reel	800 pcs/ 2 reels
				DC4.5			DC4.5
				DC5			DC5
				DC12			DC12
				DC24			DC24
			G6J-2FS-Y G6J-2FL-Y	DC3		G6J-2FS-Y-TR G6J-2FL-Y-TR	DC3
				DC4.5			DC4.5
				DC5			DC5
				DC12			DC12
				DC24			DC24
Single-winding latching			G6JU-2P-Y	DC3		－	DC3
				DC4.5			DC4.5
				DC5			DC5
				DC12			DC12
				DC24			DC24
			G6JU-2FS-Y G6JU-2FL-Y	DC3		G6JU-2FS-Y-TR G6JU-2FL-Y-TR	DC3
				DC4.5			DC4.5
				DC5			DC5
				DC12			DC12

Similar Product Spec Comparison Table

Please swipe the table.

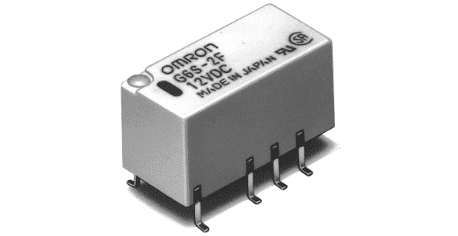

		G6J-Y		G6S

Terminal shape		PCB terminals	Surface-Mounting	PCB terminals	Surface-Mounting
Contact form		2c		2c
Rated load		AC125V 0.3A DC30V 1A		AC125V 0.5A DC30V 2A
Max. switching current		1A		2A
Dimensions	H(mm)	9	10	9.2
	L(mm)	10.6		14.8
	W(mm)	5.7		7.3
Power consumption (Single-side stable)		140mW ~ 230mW		140mW ~ 200mW
Operating (set) time/Release (reset) time		3ms max./3ms max.		4ms max./4ms max.
Insulation resistance		1,000 MΩ min.		1,000 MΩ min.
Dielectric strength	Between coil and contacts	AC1,500V 1min		AC2,000V 1min
	Between contacts of different polarity	AC1,000V 1min		AC1,500V 1min
	Between contacts of the same polarity	AC750V 1min		AC1,000V 1min
Mechanical durability		50,000,000 operations min.		100,000,000 operations min.
Electrical durability		100,000 operations min.(Rated load)		100,000 operations min.(Rated load)
Impulse withstand voltage	Between coil and contacts	2,500V 2 x 10μs		2,500V 2 x 10μs
	Between contacts of different polarity	1,500V 10 x 160μs		1,500V 10 x 160μs
	Between contacts of the same polarity	1,500V 10 x 160μs		1,500V 10 x 160μs
Ambient operating temperature		-40 ~ +85℃ (with no icing or condensation)		-40 ~ +85℃ (with no icing or condensation)
Ambient operating humidity		5 ~ 85%RH		5 ~ 85%RH
Single-side stable		●	●	●	●
Single-winding latching		●	●	●	●
Double-winding latching		-	-	●	●

You can check the technical details of the products from the following resources:

G6J-Y Datasheet More Infomation
G6S Datasheet More Infomation

G6J-Y Relay
Application Examples

5G Related

The next-generation communication standard "5G" has begun to be introduced in various devices including 5G base stations.
The G6J-Y contributes to the high integration of communication equipment such as Exchanges and Edge Routers, Ethernet Switches, and Set-Top Boxes.

Digital Switching System
Edge Router
Set Top Box

Smart Home Related

In smart home-related fields, G6J-Y can be used in a variety of devices, from Smart Meters, Thermostat Controllers, Security Devices to Digital Audio Players.

Smart Home
Controller
Thermostat
Controller
Smart Meter
Digital Audio
Player
Security Equipment

Other application examples

Home Appliances Air Conditioner (Outdoors) Indoor / outdoor unit standby power cut
Indoor / outdoor unit control
Industrial Semiconductor Manufacturing Equipment Control board : Control signal switching
Industrial Machine Tool External output board : Switching I/O signals
Building Automation Access Control System TV doorphone : Switching between audio and image
Industrial Test and Measurement Equipment Measurement circuit: Switching singal
Building Automation Fire/Smoke/Gas Alarm System Detector : Alarm signal
Controller : Control signal switching
Energy Power Conditioner for Solar Power Generation Power Conditioner : Operation signals, error signals
