XP2U-001 Testing Socket for Devices with USB Type C Connectors

Socket for testing electronic devices that have a USB Type-C I/O connector

XP2U-001

Note: This web page provides an excerpt from a datasheet. Refer to Product Datasheet and other applicable documents for more information.

Feature

  • Testing can be accomplished by simply inserting the connector into the USB Type-C connector on the electronic device
  • You can connect to the testing equipment by one touch connection to the USB Type-C connector.

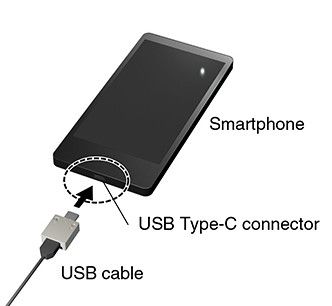

Smartphone USB Type-C connector USB cable

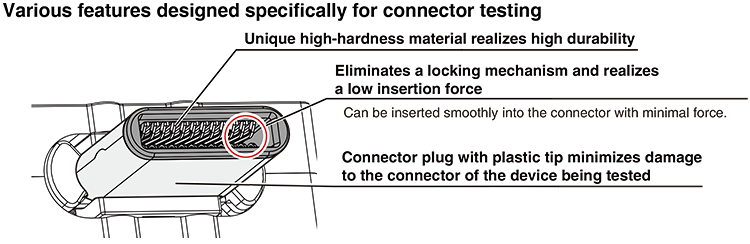

Various features designed specifically for connector testing

Unique high-hardness material realizes high durability Eliminates a locking mechanism and realizes a low insertion force:Can be inserted smoothly into the connector with minimal force. Connector plug with plastic tip minimizes damage to the connector of the device being tested

Plastic tip:Plastic

The tip is plastic to reduce the possibility of scratching the device being tested

Floating structure:Can moveapprox. 1°

The tip moves flexibly, allowing easy insertion even if the insertion angle is not completely horizontal.

Application examples

●Testable devices

All electronic devices that have a USB Type-C connector can be tested.

Smartphone inspection

Smartphone inspection

Handheld game console inspection

Handheld game console inspection

Electronic tobacco inspection

Electronic tobacco inspection

Digital camera inspection

Digital camera inspection

Headphone inspection

Headphone inspection

Notebook computer inspection

Notebook computer inspection

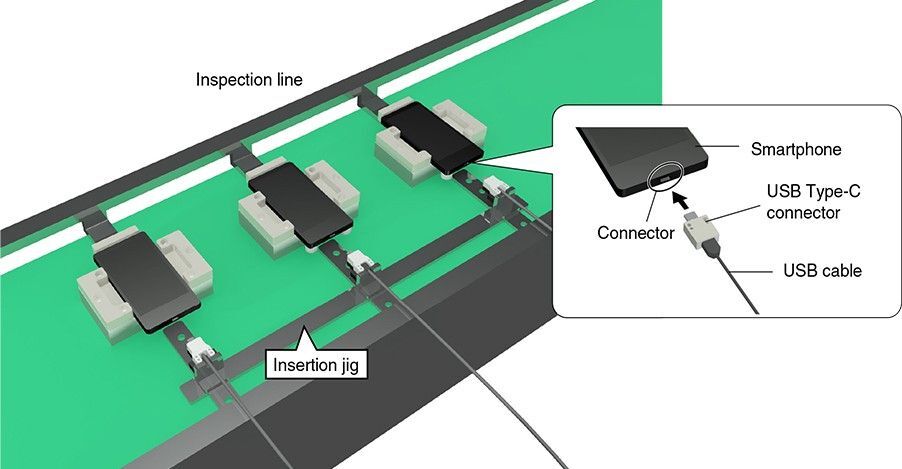

●Example testing setup

Inspection line Smartphone Connector USB Type-C connector USB cable Insertion jig
