vol.298 November 2025
The component outputs an abnormal state and informs you of the cause.
Industrial equipment requires not only stable operation but also reduced downtime. When any problem occurs, it is crucial for maintenance personnel to quickly identify its cause, and proceed with recovery measures as quickly as possible.
OMRON’s components come installed with a function that can transmit the cause of a problem. When an abnormality occurs, the components quickly identify the cause without the need for human intervention, helping you to quickly take recovery actions.
In equipment using high-capacity relays, if the relay contacts are welded, excessive current will continue to flow through that point, causing overheating and potentially leading to a dangerous chain reaction resulting in a fire.
Welded relay contacts can be
detected immediately,
contributing to early safety operation.

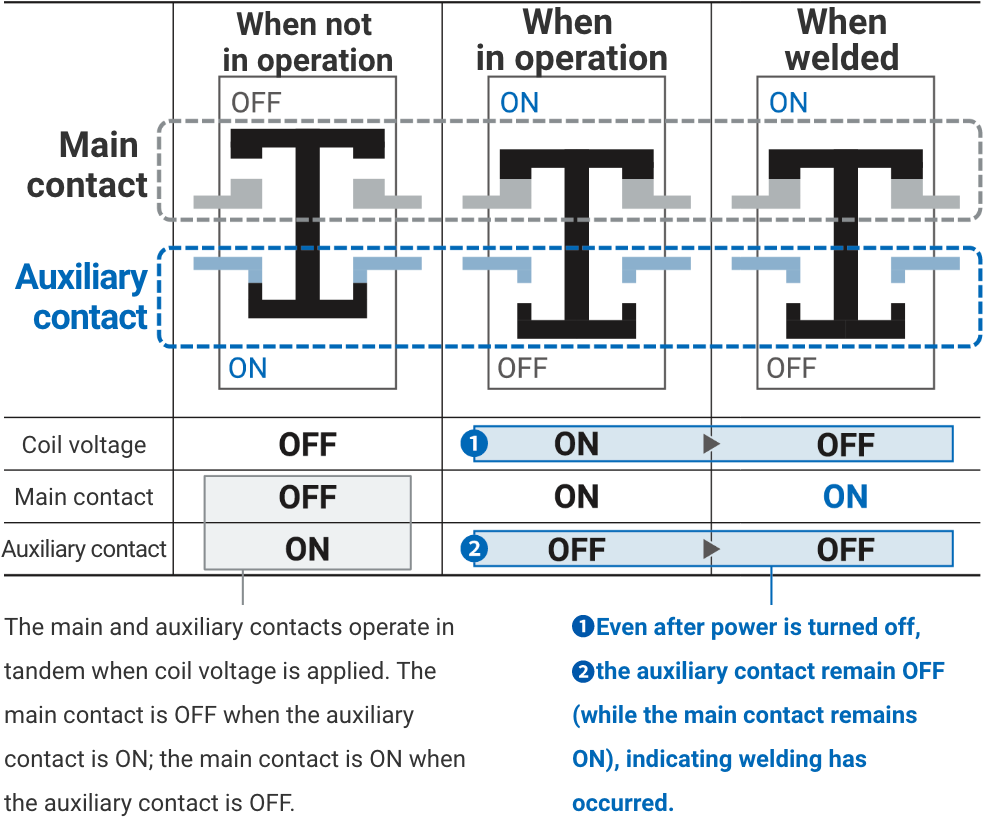

By reading the ON/OFF signal of the auxiliary contact, it is now possible to determine whether welding has occurred.
Note: See reverse side for details on the auxiliary contact.
Immediate detection of contact welding enables safe operations such as interruption.

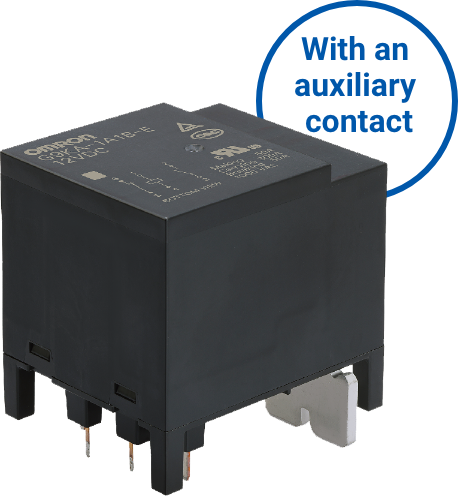

Power Relay
G9KA-1A1B-E
1000 VAC, 300 A cutoff
Disconnections and short circuits cannot be identified without on-site verification. It takes time to first go to the site, check whether the operation is normal or abnormal, perform the preparation work again in case of an abnormality, and start the operation.
The switch inside the equipment outputs the status of normal operation and abnormal operation,
contributing to early repair response.

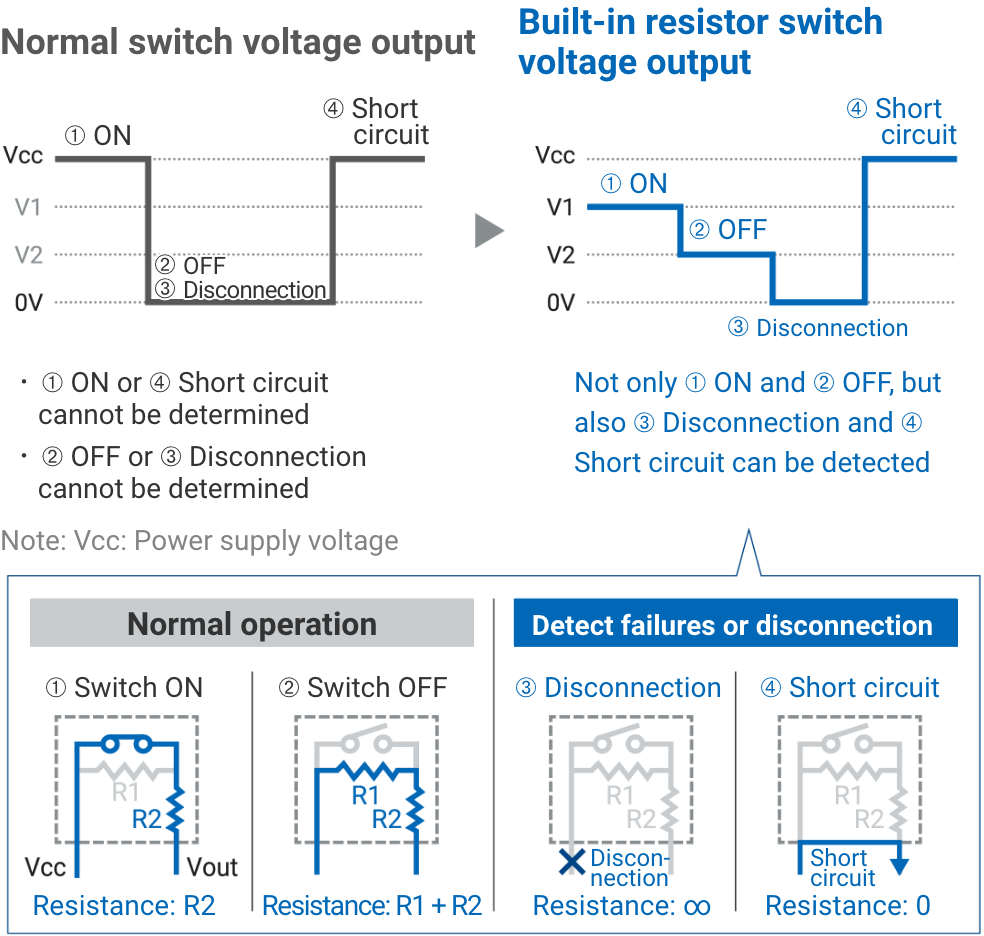

The built-in resistor enables detection of normal ON, normal OFF, disconnection, and short circuit.
Early repairs are possible because voltage output allows for detection even from a distance.

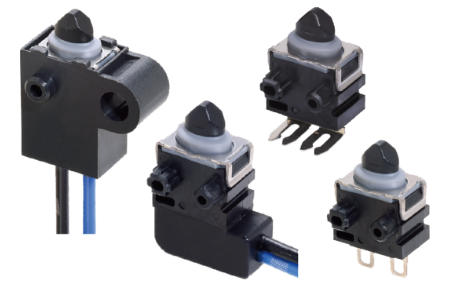

Sealed Ultra Subminiature Basic Switch with
Integrated Resistors
D2EW-R

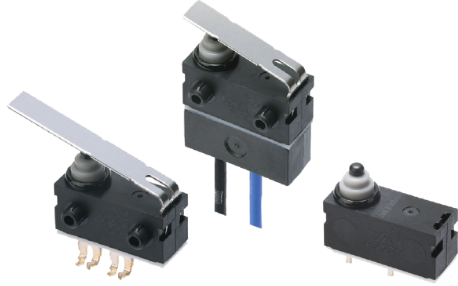

Sealed Ultra Subminiature Basic Switch with
Integrated Resistors
D2AW-R
* Contents as of October 2025.
In the interest of product improvement, specifications are subject to change without notice
