What are the product life, recommended maintenance and replacement timing of relays?
ID： FAQE10052E
update:
Answer
As the durability (life) of the product varies greatly depending on the operating conditions and environment, the recommended maintenance and replacement timings are not specified.
Based on the electrical and mechanical durability of relays, select a relay that meets your equipment, load, and application requirements.
Explanation
Life of relay
Relay durability involves contact durability and coil durability.
- Durability of coil: The standard value is 40,000 hours because of decrease in insulation due to heat generation when the rated voltage is continuously applied to the coil.
- Durability of contact: Select a relay by referring to the graph of “Maximum opening/closing capacity” and “Durability curve” shown on the datasheet or the number of opening and closing times in the durability (electrical) data. The following are examples of power relays and signal (communication) relays.

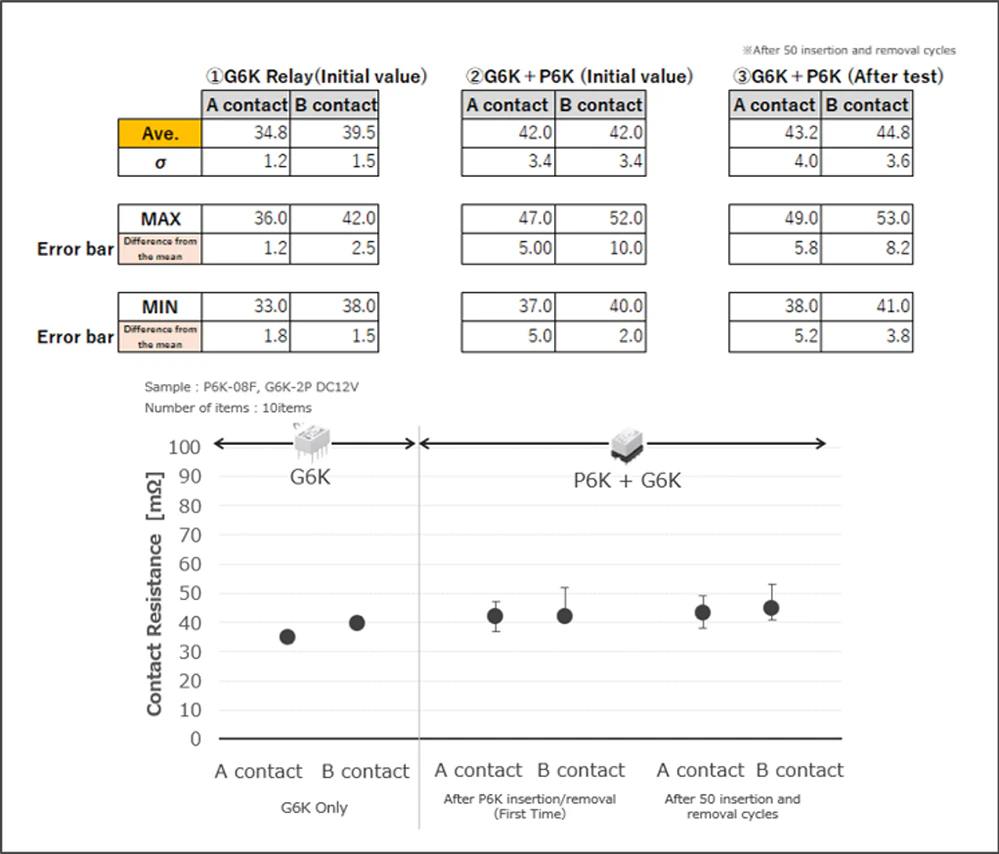

If contact reliability is important for signal (communication) relays, refer to the stability of contact resistance in contact reliability tests.
For more information, see FAQE10011E "Explain the maximum opening and closing capacity in the relay characteristics data." and FAQE10013E "Explain how to interpret relay durability curve data.".
Recommended maintenance and replacement timing
The following details can help you decide when to maintain the relay.
Quick tips
We have prepared a technical support page dedicated to high-capacity relays that explains in detail "I don't know" when using high-current, high-voltage PCB power relays, such as back EMF voltage (Zener diode and varistor) of the coil, holding voltage application circuit, recommended conditions for high-current substrate flow solder, the influence of magnetic fields, and precautions when connecting in series and parallel. Please also use this as well.
Click here for the high-capacity power relay technical support page.
