Products Casino
No applicable products.
| Category | Product | Model | Product Photo | Application | Feature | Specification | Dimension(mm) | Download |
|---|---|---|---|---|---|---|---|---|
| Sensor | Magnetic Sensor | W2DN-06 |
 |
Magnetic detection for unauthorized play | Wide detection area High sensitivity Four sensitivity range | Φ：270~310mm at maximum sensitiity Power Voltage: DC5~12V | 18×12×7 | Data sheet |
| Category | Product | Model | Product Photo | Application | Feature | Specification | Dimension(mm) | Download |
|---|---|---|---|---|---|---|---|---|
| Sensor | Touch Switch | W2GJ-F5 |
 |
Touch detection | Easy installation Flat type | Detection capacitance: 35±7pF Power Voltage: DC5~15V | 15×15×5.5 | Data sheet |
| Sensor | Touch Switch | W2GJ-L6 |
 |
Touch detection | Easy installation Vertical type | Detection capacitance: 35±7pF Power Voltage: DC5~15V | 15×15×5.5 | Data sheet |
| Category | Product | Model | Product Photo | Application | Feature | Specification | Dimension(mm) | Download |
|---|---|---|---|---|---|---|---|---|
| Sensor | LED built-in Photo Micro Sensor | W5HG-09 |  |
Object detection for switching | LED built-in Connector type |
Output: Open Collector Power Voltage: 5V ± 10% |
16.1 x 17.5 x 8.3 | Data sheet |
| Category | Product | Model | Product Photo | Uses | Feature | Specification | Dimension(mm) | Download | Product detail |
|---|---|---|---|---|---|---|---|---|---|
| Sensor | Light Convergent Reflective Sensor | B5W-LB series |  |
Object detection | Reliable detection Shiny, black or transparent Wide sensing range |
Output: Open collector Sensing Distance: 2 to 55mm Power supply voltage: 24VDC±10% |
26 x 13 x 8.4 40 x 15.9 x 8.4 |
Data sheet | Product site Application guide |
| Sensor | Diffuse Reflective Sensor | B5W-DB11A1-A |  |
Object detection Human detection |
Miniature Immune to ambient light |
Output: Open collector Sensing Distance: 550mm Power supply voltage: 12VDC±10% |
26 x 13 x 8.4 | Data sheet | Product site |

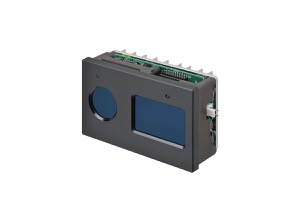

| Sensor | 3D TOF Sensor Module | B5L |  |
3D detection | Interference prevention High dynamic range Edge noise reduction |
Sensing Distance: 0.5m～4m | - | Data sheet | Product site Product video |

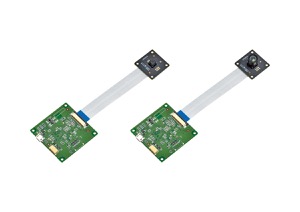

| Sensor | Human Vision Components | B5T-007001-010 |  |
Human recognition | 10 different image sensing Easy-to-mount |
Detection Range Horizontal: 54°±3° Detection Range Vertical: 41°±3° Detection Distance for human body: about 17m |
- | Data sheet | Product site Product video White paper |
| Sensor | Human Vision Components | B5T-007001-020 | |
Human recognition | Detection Range Horizontal: 94°±3° Detection Range Vertical: 76°±3° Detection Distance for human body: about 8m |
- | |||

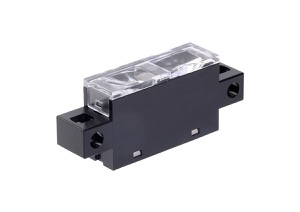

| Sensor | Color Sensor | B5WC |  |
Detection of change and differences in color | Reliable detection | Detection Distance 40mm Output: I2C I/O: Connector |
40 x 15.9 x 8.4 | Data sheet | Product site Product video |

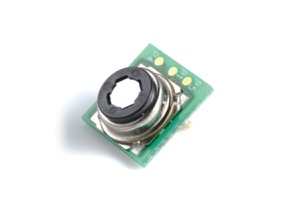

| Sensor | MEMS Thermal Sensors | D6T-1 series |  |
Contactless temperature measurement | Detect slightest temperature changes Low noise Easy connection |
Number of Elements: 1x1 Viewing angle: X=26.5°～58°、Y=26.5°～58° Object temperature detection range: -40 to 80°C |
- | Data sheet | Product site Product video White paper |
| Sensor | MEMS Thermal Sensors | D6T-8 series | |
Contactless temperature measurement | Number of Elements: 1x8 Viewing angle: X=54.5°、Y=5.5° Object temperature detection range: 5 to 200°C |
- | |||
| Sensor | MEMS Thermal Sensors | D6T-44 series | |
Contactless temperature measurement | Number of Elements: 4x4 Viewing angle: X=44.2°、Y=45.7° Object temperature detection range: 5 to 200°C |
- | |||
| Sensor | MEMS Thermal Sensors | D6T-32 | |
Contactless temperature measurement | Number of Elements: 32x32 Viewing angle: X=90.0°、Y=90.0° Object temperature detection range: 0 to 200°C |
- | |||

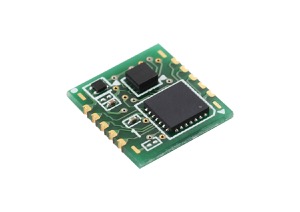

| Sensor | Vibration Sensor | D7S |  |
Earthquake detection | Smallest | Power Voltage: 2.1～5.5V Mount: SMD |
10.6 x 9.8 x 2.1 | Data sheet | Product site Product video |
| Category | Product | Model | Product Photo | Application | Feature | Specification | Dimension(mm) | Download |
|---|---|---|---|---|---|---|---|---|

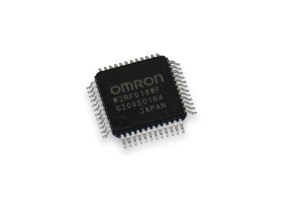

| IC | Motor Control IC | W2RF018WF |
 |
For Brushless DC motor | CMOS Serial interface Motor 2ch |
Package: QFP-48pin Power Voltage: 3.0~5.5V |
9×9×1.7 | Data sheet |
| IC | Motor Control IC | W2RF008WF |
 |
For stepping motor | CMOS Serial interface Motor 2ch / Solenoid 4ch |
Package: QFP-48pin Power Voltage: 3.0~5.5V |
9×9×1.7 | Data sheet |

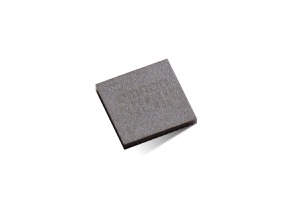

| IC | LED Driver | W2RG012RN |
 |
For LED lighting control | 256 color gradiation LED max 128ch |
Package: QFN-48pin Power Voltage: 3.0~5.5V |
7×7×1 | Data sheet |
| Category | Product | Model | Product Photo | Application | Feature | Specification | Dimension(mm) | Download |
|---|---|---|---|---|---|---|---|---|
| Motor | Brushless DC Motor with gears |
W2SKB-1A |
 |
Reel in slot | Middle size High power High efficiency |
Rated Torque: 10mNm No Load Speed: 5,500rpm or more Power Voltage: DC24V ± 5% for motor DC5V ± 5% for hall IC |
Φ51×25 | Data sheet |
| Motor | Brushless DC Motor | W2SHM-1 |
 |
Reel in slot | Middle size High power High efficiency |
Rated Torque: 10mNm No Load Speed: 4,400rpm or more Power Voltage: DC12V ± 10% for motor DC5V ± 10% for hall IC |
Φ29.5×18.8 | Data sheet |
| Category | Product | Model | Product Photo | Application | Feature | Specification | Dimension(mm) | Download |
|---|---|---|---|---|---|---|---|---|
| IC | Motor Control IC | W2RF018WF |
|
For Brushless DC motor | CMOS Serial interface Motor 2ch |
Package: QFP-48pin Power Voltage: 3.0~5.5V |
9×9×1.7 | Data sheet |
| Category | Product | Model | Product Photo | Application | Feature | Specification | Dimension(mm) | Download |
|---|---|---|---|---|---|---|---|---|

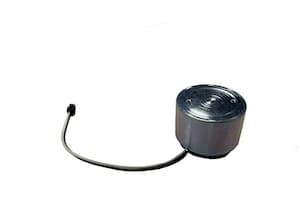

| Motor | VCM | W5HG-14 |
 |
Haptics | Vibration Unique feeling Smooth move |
Attraction: 4.00N or more at 5mm travel, 1.09A current. Operation cycle: 25% intermittent currenct 30sec Rated Voltage: DC12V Coil Resistance: 11Ω±10% |
Φ30×21.2 | Data sheet |
| Category | Product | Model | Product Photo | Application | Feature | Specification | Dimension(mm) | Download | Product detail |
|---|---|---|---|---|---|---|---|---|---|
| Switch | Lever Switch | W5HD-01 |
 |
Play lever in slot | 360° operability High durability |
Operation Strength: 300N Durability: 10million cycle Power Voltage: DC5V ± 10% |
99.3×43×35 | Data sheet Coming soon |
－ |

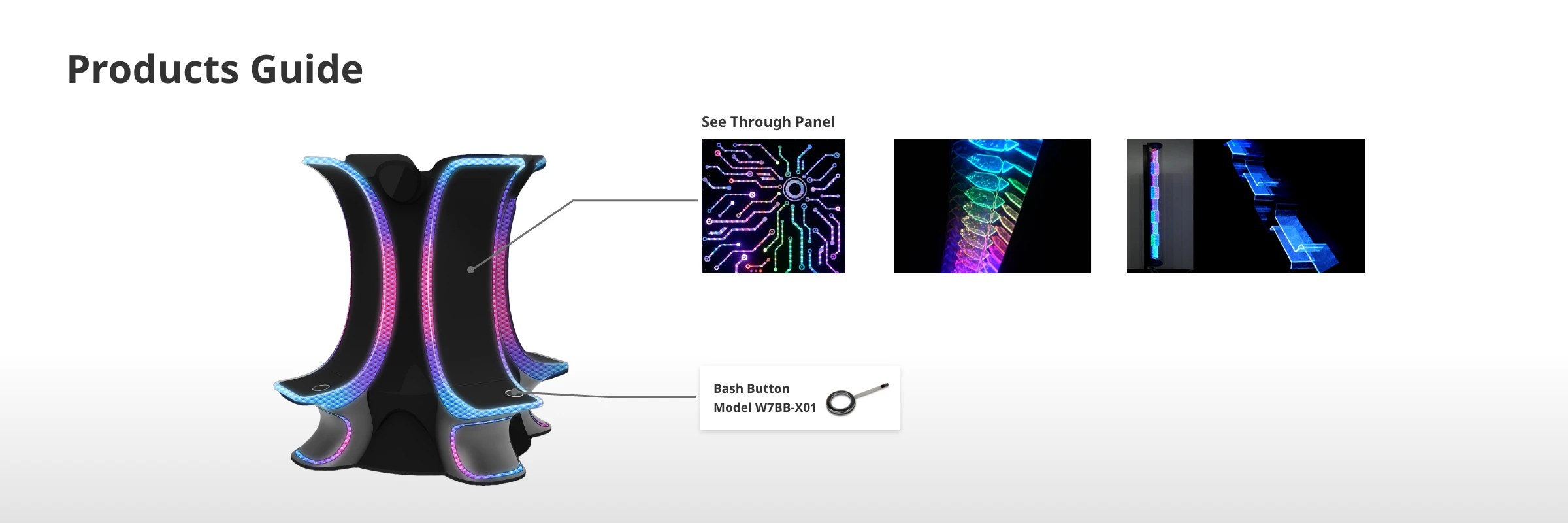

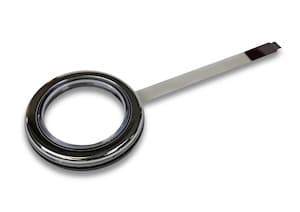

| Switch | Bash Button | W7BB-X01 |
 |
Play button in slot | See-through keytop High durability Water resistance |
Operation Force: 2.1N Durability: 4million cycle Power Voltage: DC5V ± 5% for switch function DC24V ± 5% for switch function |
Φ84×14.2 | Data sheet | Product site Technical paper |
