4. For BGA

Test Sockets for BGA
For BGA
Contents Specification
Pitch 0.4/0.5mm or more
Stroke 0.2~0.15mm
Durability 200k cycles or more

※ Each pin and socket is designed according to the actual customer’s application. Contact us for details.

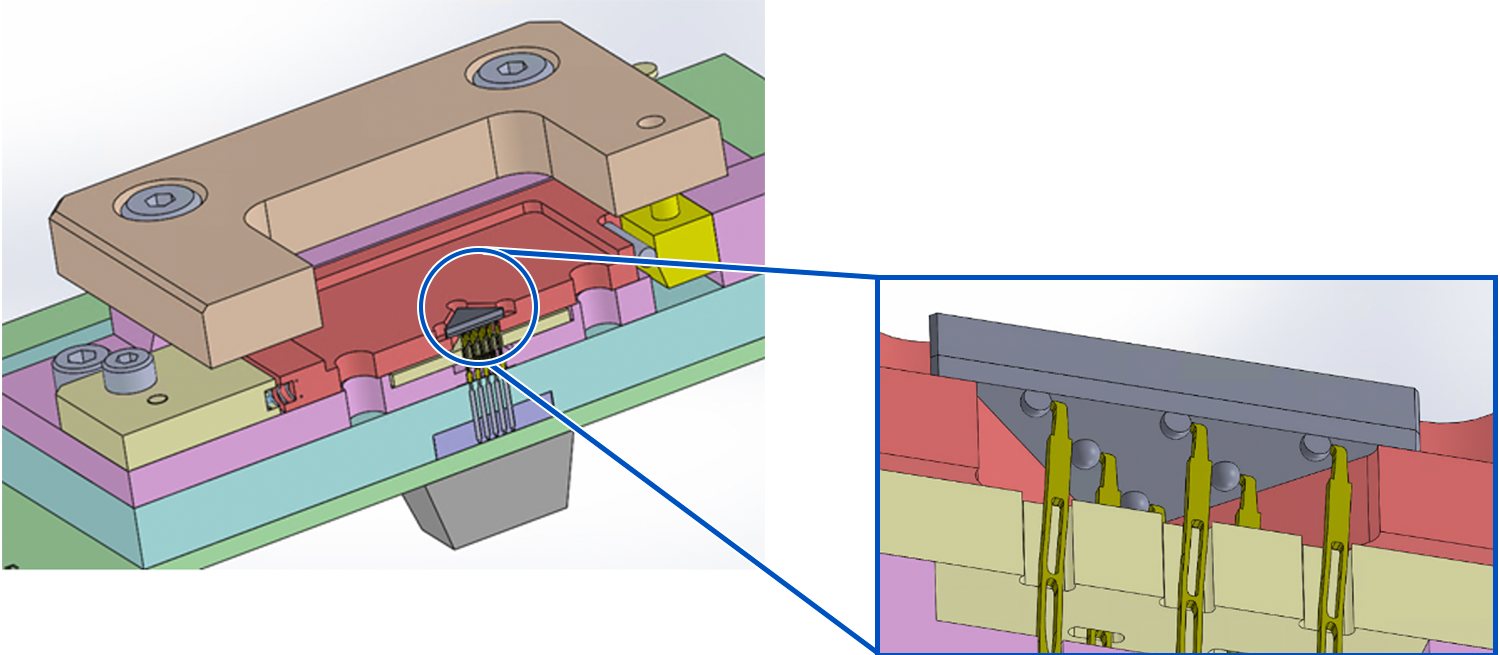

BGA / Enlarged view
Conventional Pogo-pin and Blade-pin for side-contact

Key features:

  • (1) Deformation/damage prevention of lead frame. Realized by side contact structure.
  • (2) Solder transfer prevention. Realized by wiping motion horizontally to solder surface.
