Solutions for PC Board Designers: 4 Requirements to Consider in Electronic Board Design
Omron offers optimized solutions and services to support your business from product design to production. The environment surrounding the manufacturing industry is drastically changing.
Design and production divisions in your company must be facing managerial challenges to cope with the rapidly changing manufacturing environment.
To solve your managerial challenges, our electronic and mechanical components offer optimized solutions and support services provided on a global scale.
01Energy-saving Electrical Components
Omron components help save energy and suppress heat in circuit design

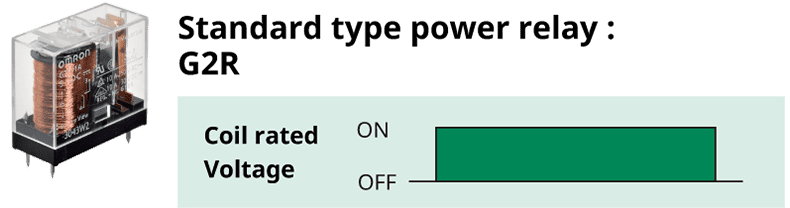

We have two types of solutions to achieve energy savings for your devices. One is to use low power consumption type relays.
The other is to adopt low power consumption drive design with latching type and coil voltage holding type relays.
01-1Low power consumption devices
High-sensitivity type (low power consumption)Small amount of an applied voltage to switch between ON and OFF
- <Other high-sensitivity models>
- Mini relay : G6A-2 ( High-sensitivity type 150 mW)
Mini relay : G5V-2 (High-sensitivity type 150 mW; rated voltage of DC12V )

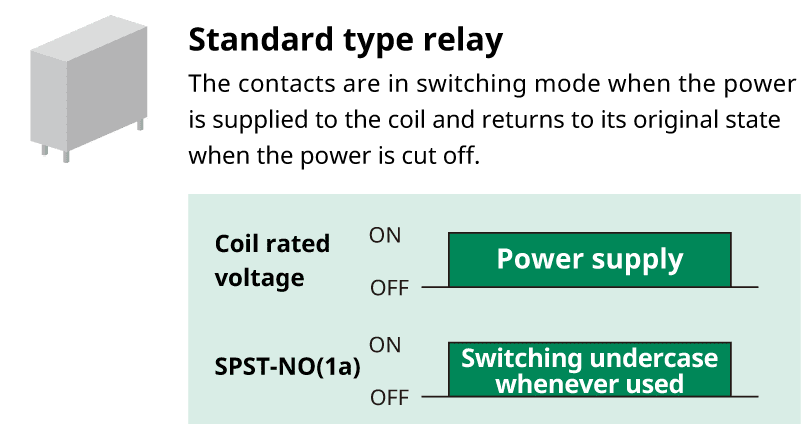

01-2For low power consumption drive design

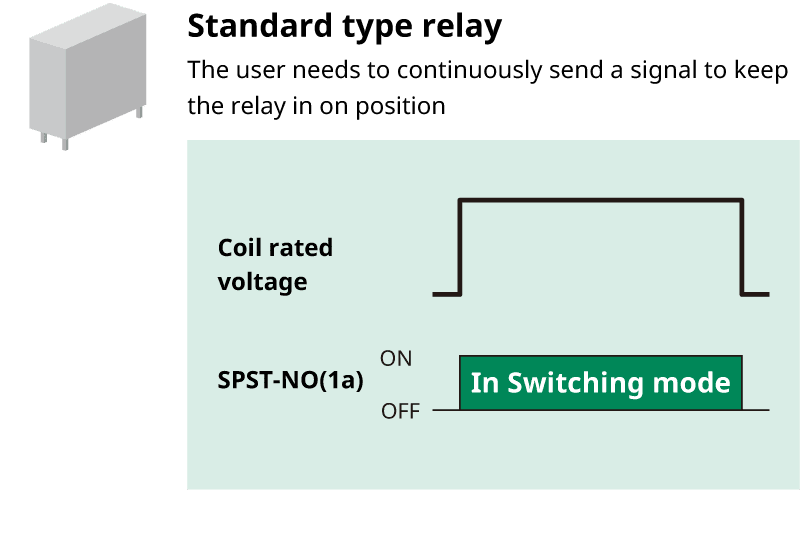

Latching typeFeatures a low power consumption by transmitting a signal only when ON and OFF switching takes place.
- What is a latching function?
- When a voltage is applied to the coil, the contacts switch ON and OFF. The latching function enables maintaining the contact position even after the voltage is cut off. This saves coil power consumption while the device is in operating mode and ultimately contributes to energy-saving.
Holding typeFeatures a low power consumption by transmitting a signal only when ON and OFF switching takes place.
02Assemble time reduction / automatization
Diverse lineup of component products that contribute to automated mounting
Omron has a line up of surface-mount components suitable for automatic PCB mounting across its product groups: sensors, connectors, switches and relays. Our components contribute to reducing the mounting space on the PCB as well as assembly man-hours.
02-1Surface-mount devices for PC Boards
- Signal RelayG6K/G6J/G6S
- High Frequency RelayG6K-2F-RF-V/G6K-RF
- MOS FET RelayG3VM
- MOS FET Relay ModuleG3VM-66MSPDT, small footprint
- Tactile SwitchB3SL/B3ALLong / middle stroke
- Tactile SwitchB3S/B3SN/B3SESealed, low profile,
- Tactile SwitchB3FS/B3FS-4Non sealed,
good click feeling
- Dip SwitchA6H/A6HF/A6S-H/A6SN/A6HR/A6SRSlide/piano type
- Dip SwitchA6KS/A6SKV/A6RSRotary type
- FPC/FCC ConnectorXF2M/XF3MSuper low profile,superior work efficiency(rotary back lock)
- Half-pitch ConnectorXH4A/XH5-N
- Mini-USB ConnectorXM7D
- D-sub ConnectorXM3K-N/
- Terminal BlockXW4H/XW4K/XW4L

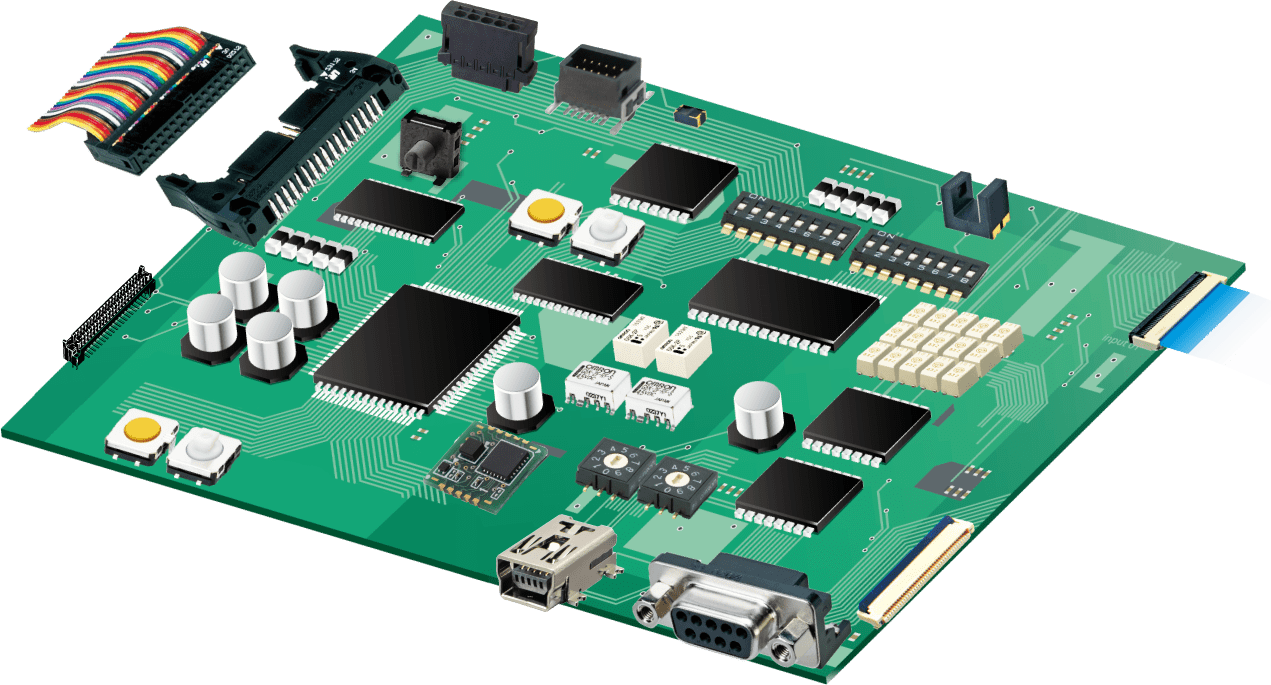

Omron Surface-mount components
Relay Signal relay G6K/G6J/G6S High frequency relay G6K-2F-RF-V/G6K-RF MOS FET relay G3VM MOS FET relay module G3VM-66M Switch Tactile switch B3SL/B3AL
Dip switch (slide/piano) A6H/A6HF/A6S-H/A6SN/A6HR/A6SR Dip switch (rotary) A6KS/A6SKV/A6RS
Connector FPC/FCC connector XF2M/XF3M Half-pitch connector XH4A/XH5-N D-sub connector XM3K-N/XM3L-N Mini-USB connector XM7D Terminal block XW4H/XW4K/XW4L Sensor Photomicro sensor EE-SX/EE-SY Seismic sensor D7S Digital barometric pressure sensor 2SMPB
02-2Easy-to-install PC Board components

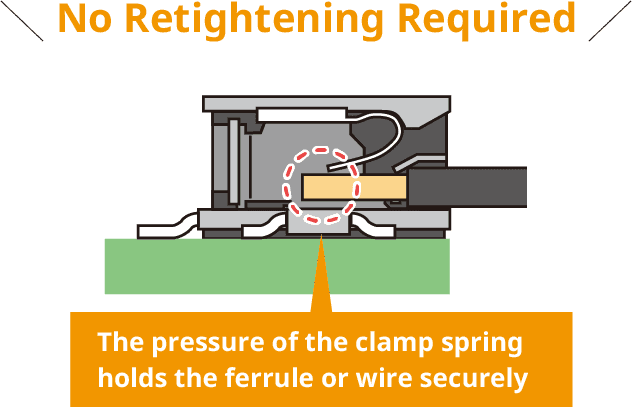

Push-in Connection PCB Terminal Block

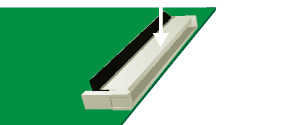

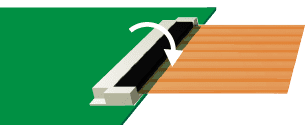

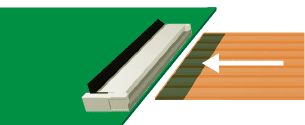

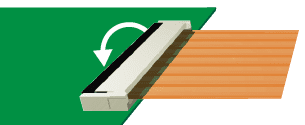

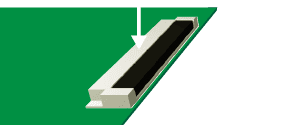

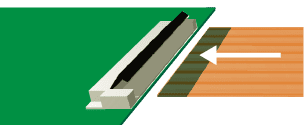

Rotary Back-lock Type FPC/FFC Connector
03Downsizing / Portability
Omron components contribute to miniaturization of your products
Our compact, slim and low-profile components contribute to your product downsizing, without sacrificing high performance.
Surface-mounting components enable further miniaturization of your products.
03-1Compact / Slim / Low-profile Components

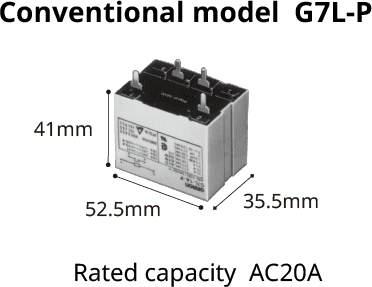

Compact power relay G7L-X
Compact MOS FET relay G3VM-31QR S-VSON package
Ultra-thin sealed tactile switch B3SE / B3U
Compact low-profile power relay G6QE
Slim power relay G6DN
Ultra small detection switch D3SK / D3SH
A unique mechanism enables high contact reliability and high precision operation.
03-2Surface-mount type components with a small footprint

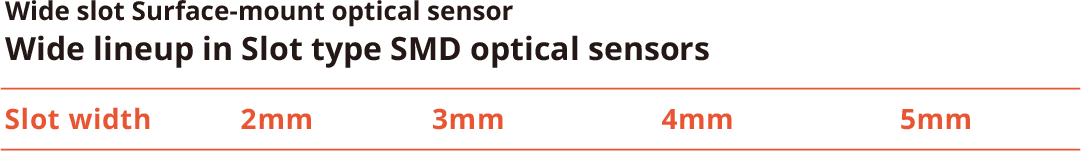

SMD type Photomicro sensor EE-SX
03-3Combined components / modules
Connector type Photomicro sensorAll in one package (sensor + PC board + connector)
MOS FET relay moduleSPDT relay module with small footprint
04High function / high performance
Omron components enable safe circuit design with sufficient margin
We have variety of high capacity, long life, and heat-resistant components to satisfy requests for the variety of your products with longer service life.
04-1High-capacity, long-life switching
High capacity relayNewly added product lineup of high-capacity relays realized with precision finishing of materials and processing methods
AC Power relay (comparision with SPST-NO type)

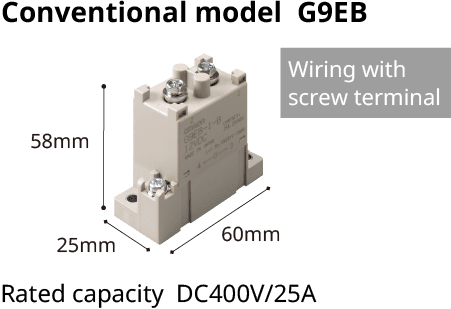

DC Power relayDC600V/25A Electrical durability:6,000 operations
or more DC1,000V/25A Electrical durability:100 operations
Basic switches for DC load modelRealized by Indium contacts.V-21-1C6 (IN) Basic switch for DC switching Ratings Electrical durability 12A 30VDC
0.3A 250VDC 100,000 operations
MOS FET relay
04-2High durability / Long life
Long-life switchRealized by adopting stainless steel spring
Photomicro sensorNon-contact sensors create a longer life design
04-3Heat-resistant relays & switches
Low signal relayG5V-1-T90 Standard type
70ºCmax. High Temperature rating type
PCB power relayG2RL-1A-E2-CV-HA Standard type
85ºCmax. High Temperature rating type
MOS FET relayG3VM Standard type
85ºCmax. High Temperature rating type
V-15□-T Standard type
105ºCmax. High Temperature rating type
04-4High frequency / low leakage current
8-GHz band miniature DPDT relayHigh-frequency characteristics (insertion loss 3 dB or less)G6K-RF G6K-2F-RF Series Line up
MOS FET relay moduleAn unique 3-FET structure creates extremely small leakage current.G3VM-MT -Features
1) Leak current : 1 p A or less
2) Downsizing with small module package
