C2U Double Action Hand Switch

Ultra-miniature, Highly Sensitive SPDT Switch for Signal Circuits

  • Good operating feeling with snap action mechanism
  • Easy to grip by hand
  • Long stroke achieved by unique mechanism
  • Having longtime experience in various applications
RoHS Compliant
Contact us FAQ
Note: This web page provides an excerpt from a datasheet. Refer to Product Datasheet and other applicable documents for more information.

Ordering Information

Category
Product code
C2U

Ratings

Resitive load
30 VDC 2 A
125 VAC 2 A

Characteristics

scroll
Operating speed 1 mm to 1000 mm/sec
Operating frequency Mechanical 120 ops/min max.
Electrical 60 ops/min max.
Insulation resistance
(at 500 VDC)		 Between terminals of same polarity 100 MΩ min.
Between terminals of different polarity
Between non-live metal parts and ground
Contact resistance (initial)∗1 2 Ω max. (at wire terminal)
Dielectric strength Between terminals of same polarity 1,000 VAC 50/60 Hz for 1 min.
Between terminals of different polarity
Between non-live metal parts and ground 1,500 VAC 50/60 Hz for 1 min.
Vibration
resistance∗2		 Malfunction Frequency: 10 to 55 Hz
1.5mm Double amplitude
Shock resistance∗2 Malfunction 300 m/s2 max.
Durability Mechanical 500,000 operations min. (at 60 ops/min.)
Electrical 200,000 operations min. (at 30 ops/min.)
Degree of protection IEC IP00
Ambient operating temperature –10 to +40°C (at 60% RH max.) (with no icing or condensation)
Ambient operating humidity 75% RH max. (for +5 to +35°C)
Weight Approx. 158 g

Operating Characteristics (initial)

Items Abbr. Unit Specification
Operating force1 OF1 N 4.90±1.47
Operating force2 OF2 N 15.69±2.94
Pretravel 1 PT1 mm (3.5)∗3
Pretravel 2 PT2 mm (11.5)∗3
Total travel TT mm (15)∗3

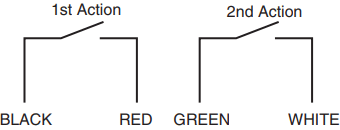

Contact Form

Contact Form

Dimensions

(Unit: mm)

C2U

  • Dimensions: C2U
  • Color of wire
    N 4.90±1.47
    N 4.90±1.47

Safety Precautions

Precautions for Correct Use

Wiring
  • The rough standard for soldering work is as follows.
  • Capacity of soldering iron: 60 W
    Soldering time: 3 sec max.
Washing
  • The Switches are not sealed, and cannot be washed. Doing so will cause the washing agent, together with flux or dust particles on the PCB, to enter the Switch, resulting in malfunction.
Application / Storage Environment
  • Do not use the Switch in locations that are subject to toxic gas, silicon, excessive dust, excessive dirt, high temperatures, high humidity, sudden temperature changes, water splashes, or oil splashes.
    Otherwise, damage resulting by contact failure of the Switch contacts, corrosion, or other causes, or other functional failure may occur.

  • The operating characteristics, contact resistance, insulation resistance and dielectric strength of the Switches should be inspected before the usage, if there is the following conditions;

    • If they are stored more than 1 year after the production.
    • If they are fallen down.
    • If condensation occurs.
    • If they had been left out of the storage environmental conditions.
